Filter Project 13' (4 Meter) Automatic Self-Cleaning Dry Dust Collector with Arm Attachment
Filter Project 13' (4 Meter) Automatic Self-Cleaning Dry Dust Collector with Arm Attachment
The Filter Project 13' (4 meter) Automatic Self-Cleaning Dry Dust Collector with Arm Attachment is engineered to capture up to 99.99% of airborne dust generated from granite, marble, engineered stone, quartz, quartzite, fiberglass, ceramic, porcelain, concrete, and other fabrication materials.
Designed for modern fabrication shops and increasing OSHA silica regulations, this dry dust collection booth provides powerful airflow control, automatic sleeve cleaning, and targeted extraction for superior dust suppression.
Key Features
- Heavy-duty stainless steel cabinet construction
- Captures up to 99.99% of airborne dust particles
- Includes 10' movable extractor arm
- Independent on/off control for extraction arm
- Automatic self-cleaning sleeve system
- Designed for OSHA silica compliance support

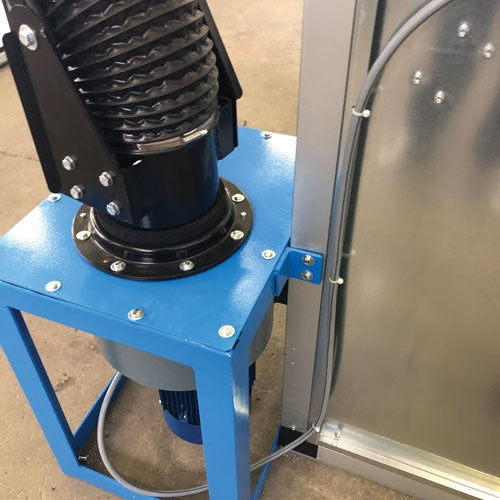

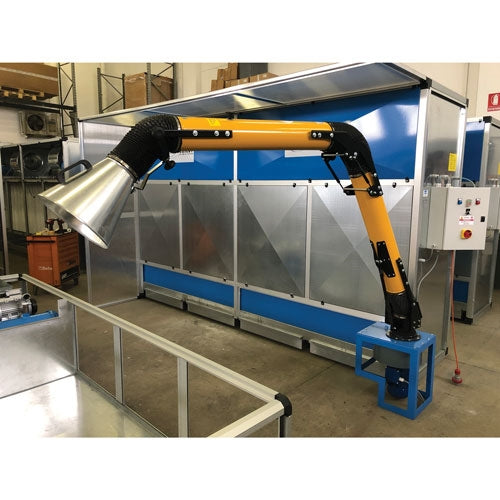

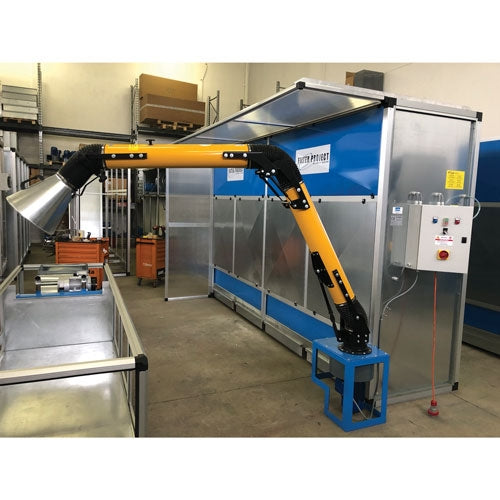

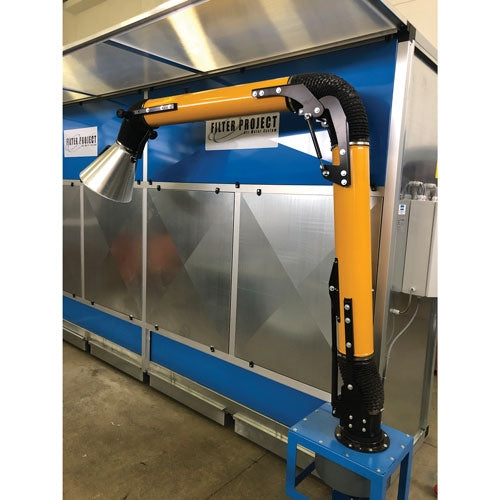

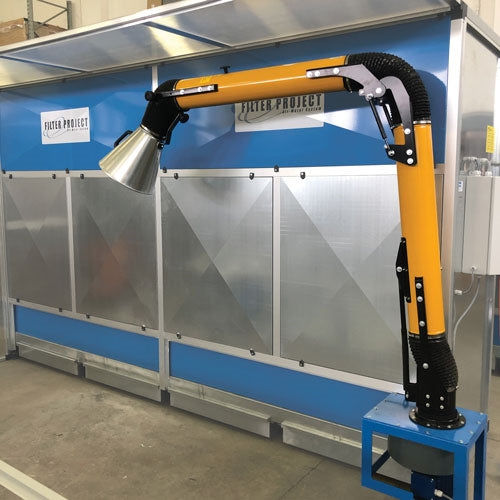

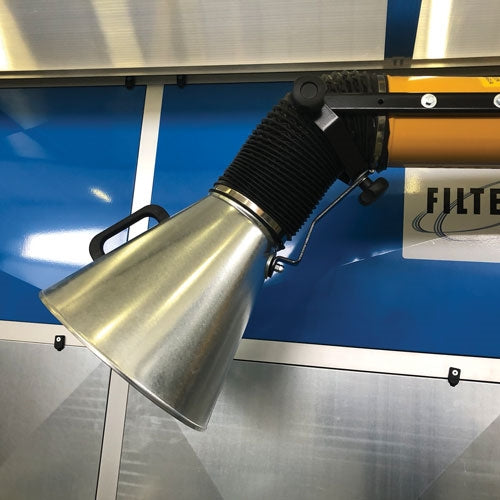

Extractor Arm Attachment

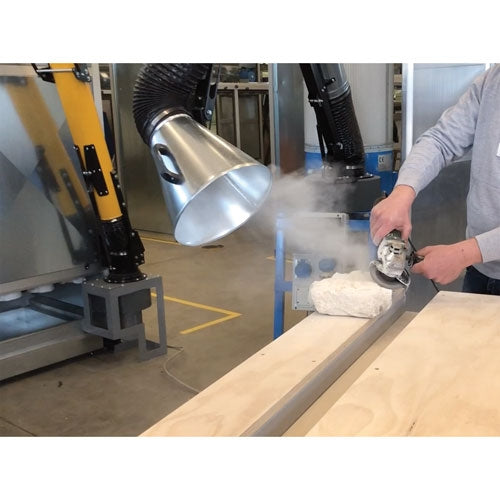

The 10' movable extraction arm is ideal for detailed work such as sculpting, edge grinding, and specialty fabrication applications. The arm operates independently via the control panel, allowing flexibility without engaging the entire booth system.
Downward Airflow Design
Filter Project dry dust collectors pull air from the bottom of the unit, creating a downward airflow from below knee level. This design immediately pulls dust away from the operator's breathing zone, dramatically reducing airborne exposure.
How It Works
Powerful motors create strong horizontal suction that pulls dust from the workbench area into the booth. Inside, specially designed cloth filter sleeves trap fine particles while clean, filtered air exits from the top of the unit.
Collected dust settles into a bottom catch basin drawer, which can be emptied daily or weekly depending on usage.
Automatic Self-Cleaning System
This system uses compressed air, a pressurized tank, and membrane electrovalves controlled by an automatic sequencer. When the unit powers down, it initiates an automatic cleaning cycle that blows dust from the filter sleeves into the collection drawer.
Extension Enclosures
- Includes 3' (1 meter) extension enclosure
- Optional 6' (2 meter) extension enclosure available
- Improves containment and vacuum efficiency
Electrical Requirements
- 220V (208V) – 3 Phase
- 30 Amp Breaker
- 90 PSI compressed air (minimum 2 CFM)
Maintenance
Each unit includes a complete set of filter sleeves pre-installed.
- Remove and clean sleeves every 6–12 months
- Wash with water and allow to fully dry before reinstalling
- Replace sleeves when vacuum performance decreases
Dust Collector Sleeve Requirements
- 6' (2 meter) Unit – 36 Sleeves
- 10' (3 meter) Unit – 52 Sleeves
- 13' (4 meter) Unit – 72 Sleeves
Applications
Granite Dust Collection, Marble Dust Collection, Quartz & Engineered Stone Dust, Quartzite Dust, Concrete Dust, Cultured Marble Dust, Fiberglass Dust, Porcelain & Ceramic Dust.
Important Notice
Not all dust collectors are suitable for combustible dust applications. Determining whether your dust is combustible depends on your specific material and fabrication process. Consult a combustible dust chart or contact us for assistance in determining the correct system for your shop.
Available Sizes
- 6 1/2' (2 meter) Automatic Cleaning Dry Dust Collection Booth – Special Order
- 10' (3 meter) Automatic Cleaning Dry Dust Collection Booth
- 13' (4 meter) Automatic Cleaning Dry Dust Collection Booth
Key Benefits
- Industrial-grade stainless steel construction
- Captures up to 99.99% of airborne silica dust
- Downward airflow for maximum operator protection
- Automatic self-cleaning filtration system
- Supports OSHA silica compliance efforts
- Designed specifically for stone fabrication environments
