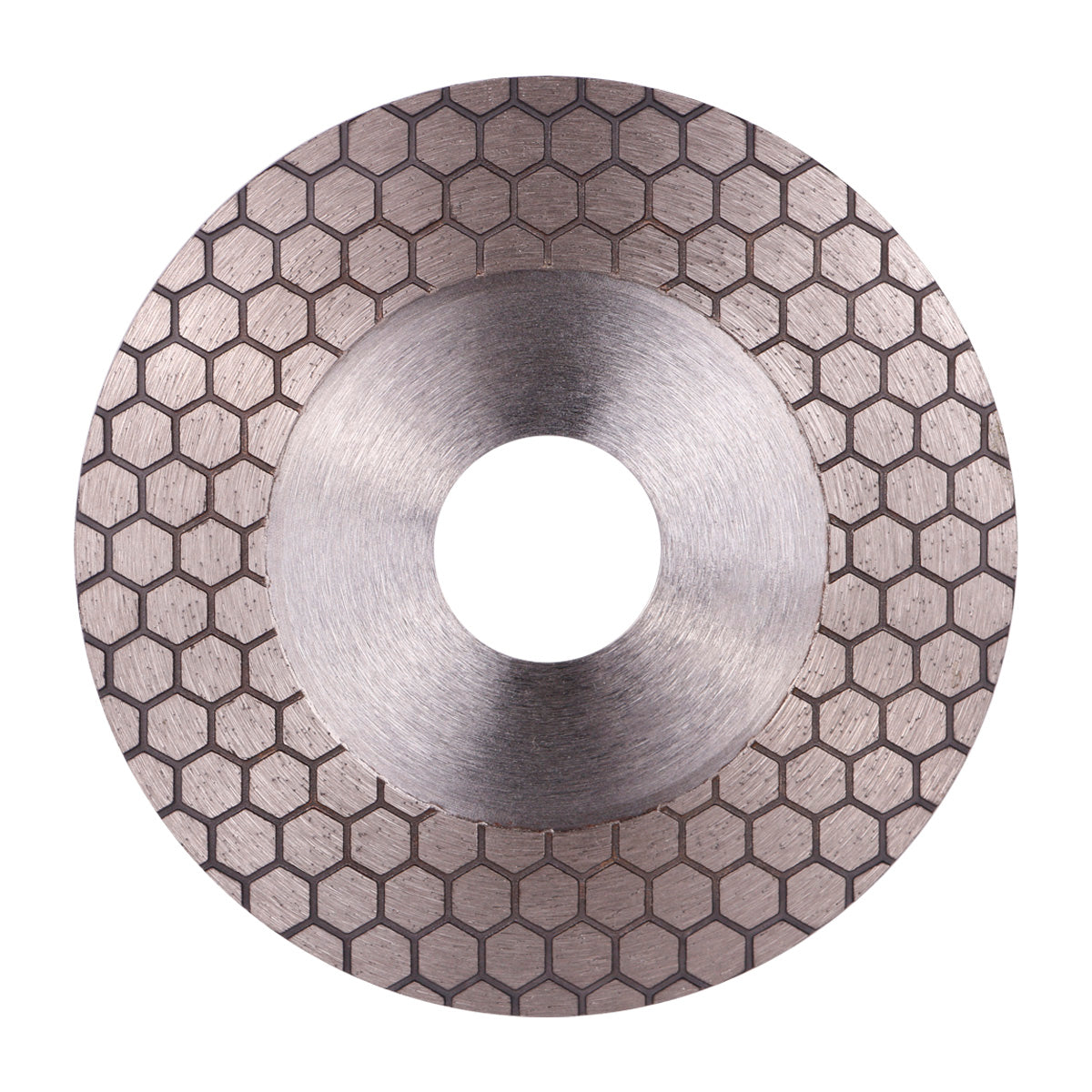

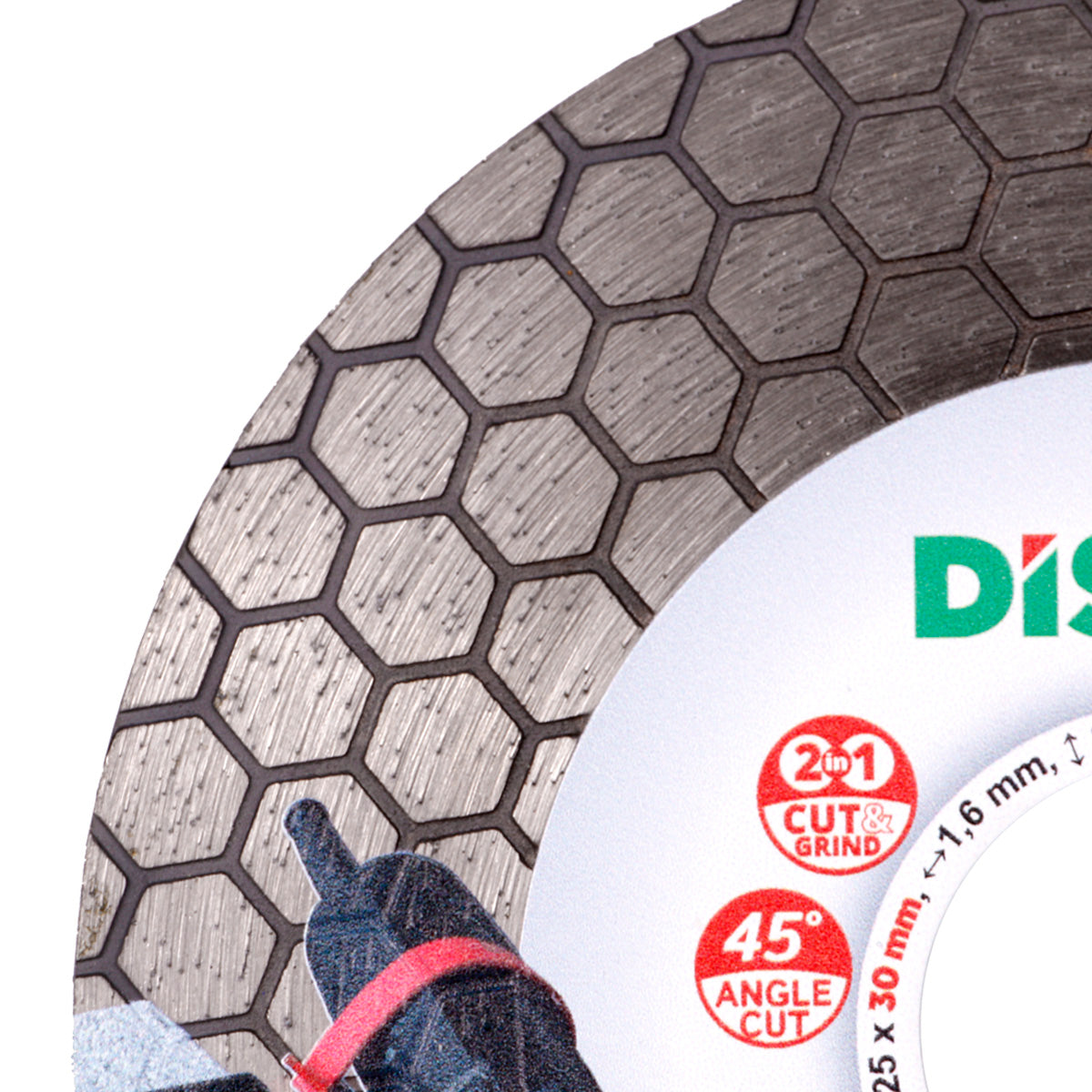

The DISTAR Edge Dry Slider 5" Diamond Blade is built for professionals who demand precision, speed, and strength when performing 45° miter cuts on ceramic and porcelain gres tiles. Its wide 1" (25 mm) bilateral diamond layer reinforces the steel core for unmatched rigidity, while the hexagon-pattern bond ensures soft, productive cutting. The large working surface creates a natural support effect, keeping cuts perfectly straight. Designed for dry use, this blade also doubles as an edge grinder, making it a versatile tool for tile finishing. With durability, speed, and clean edge quality, the Edge Dry Slider 5" is a must-have for tile installers and craftsmen.

Specification	Detail
Diameter	5 in.
Thickness	0.063 in. (1.6 mm)
Cooling	Dry cutting (no water required)
Bore Diameter	1.18 in. (30 mm)
Miter Cutting	Optimized for 45° bevel cutting
Diamond Layer	1 in. (25 mm) wide, bilateral
Design Features	Hexagon bond, reinforced steel core, edge grinding capability
Application	Ceramic tile, porcelain gres
Edge Quality	☆☆☆☆
Speed	☆☆☆☆☆
Lifetime	☆☆☆☆
Brand	DISTAR



Customer Testimonial

⭐⭐⭐⭐⭐ “This blade makes 45° tile cutting effortless. It’s strong, fast, and accurate. I love that I can also grind edges after cutting with the same blade.” – Marco T.

Usage Tips

• Use on 5" angle grinders with a 30 mm bore
• Ideal for 45° miter cuts on ceramic and porcelain gres tiles
• Works dry—no water cooling needed
• Utilize the wide bilateral diamond layer for stable, straight cuts
• After cutting, use blade edge to grind and smooth tile ends

FAQ

Q: Can the Edge Dry Slider be used for 45° miter cuts?

A: Yes, it’s specifically designed for clean and precise 45° bevel cuts.

Q: Do I need water cooling for this blade?

A: No, the Edge Dry Slider operates dry without coolant.

Q: What makes this blade different from other dry cutters?

A: Its wide bilateral diamond layer and hexagon bond give it strength, speed, and the ability to grind edges.

Q: What is the bore size?

A: The blade has a 1.18 in. (30 mm) bore, designed for 5" angle grinders.
