Achilli AFR-A Motorized Bridge Saw

Compact, motorized bridge saw with variable speed for stone, ceramic, and sintered materials.

The Achilli AFR-A is a sturdy and precise motorized bench saw designed for professional stone fabricators. Featuring a fixed bridge with tilting capability and variable speed head feed, it delivers accurate, consistent cuts across a wide range of materials including granite, marble, ceramic, and sintered stone.

Performance & Cutting Capacity

• Available useful cuts: 1000 – 1500 – 2000 – 2500 – 3000 – 3300 – 3500 mm
• Blade diameter: 250–350 mm (10”–14”)
• HT Version: 400–500 mm (16”–20”) for thicker materials
• Motor power: 5 kW (6.5 HP) – 3 Phase
• HT Version motor: 4 kW (5.5 HP) – 3 Phase

Precision & Motion Control

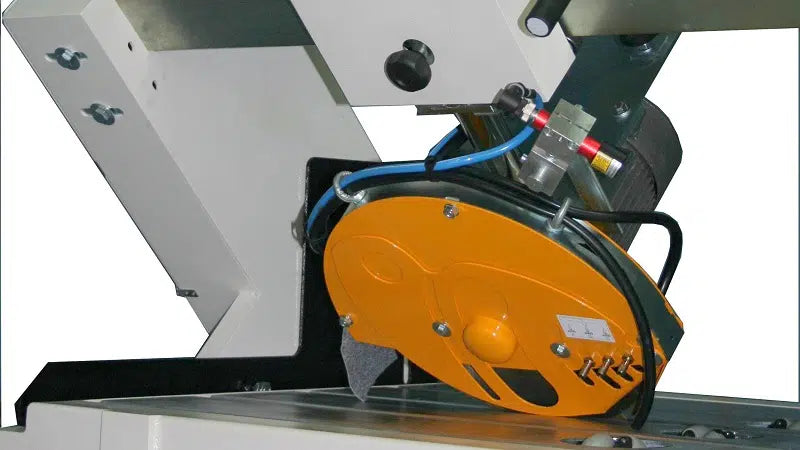

• Motorized head feed with variable speed in both directions
• Motorized cutting depth adjustment along Z-axis

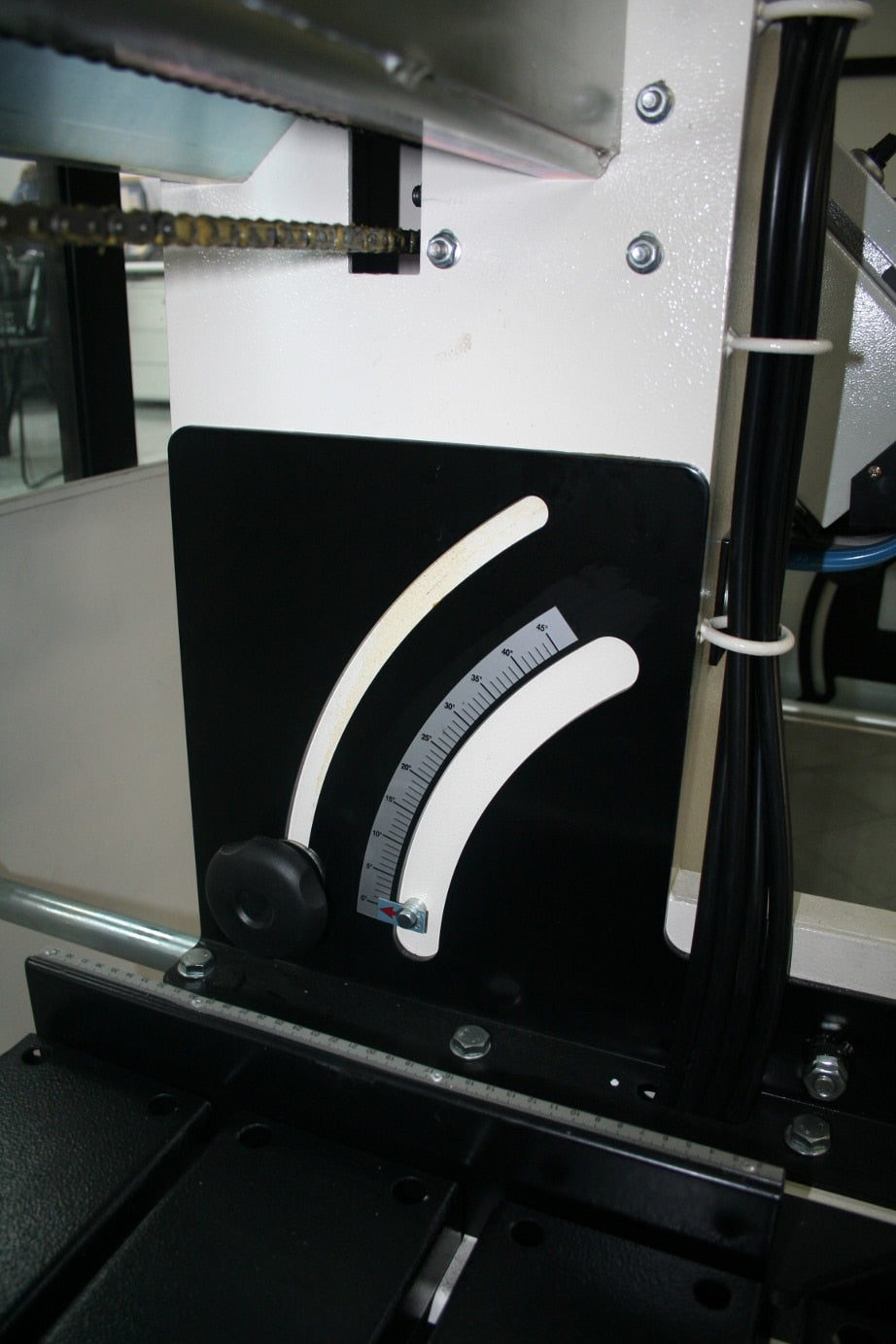

• Manual bridge tilt from 90° to 45° for angled cuts

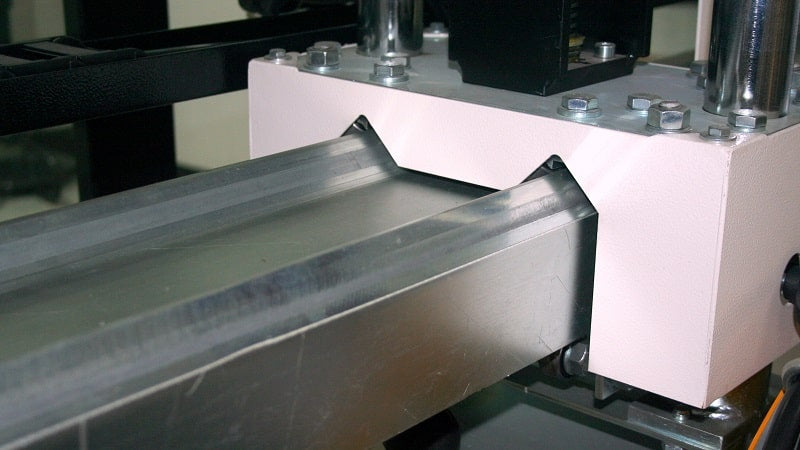

• Special beam design reduces vibration for high-precision cutting

Worktable & Structure

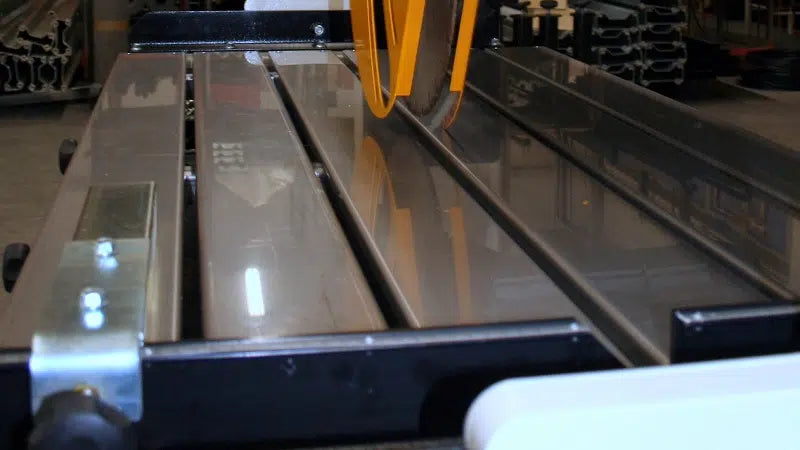

• Galvanized steel rail worktable for durability and corrosion resistance
• Integrated water tank with recycling pump for blade cooling
• Expandable working surface with optional side extension tables

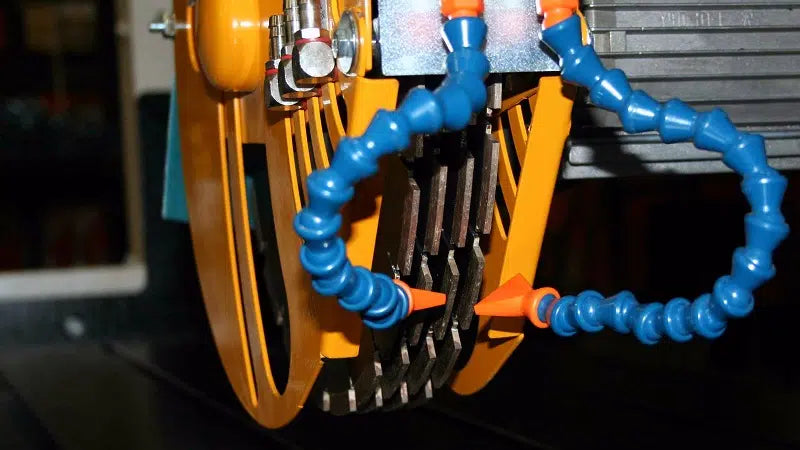

Multi-Blade Capability

Compatible with multiple blade setups for processing anti-slip grooves and specialized surface finishes.

Optional Accessories

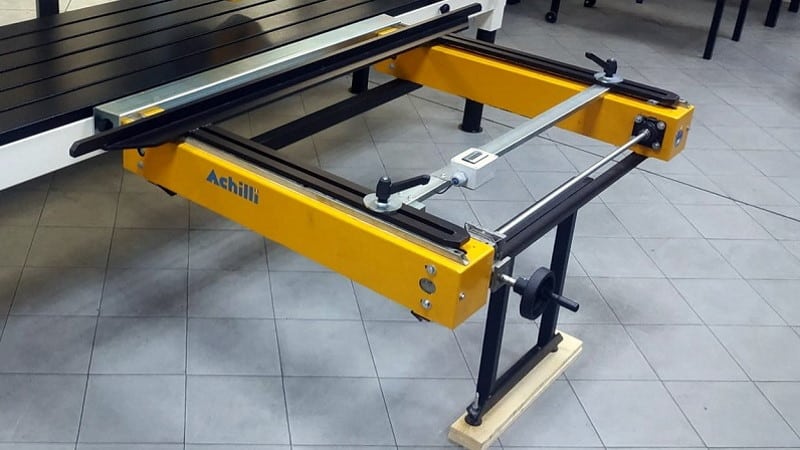

• Parallel Cut Device: Enables precise and repeatable parallel cuts using adjustable side stop control
• HT Version: High-thickness configuration for larger blades (Ø 400–500 mm) and heavy-duty cutting

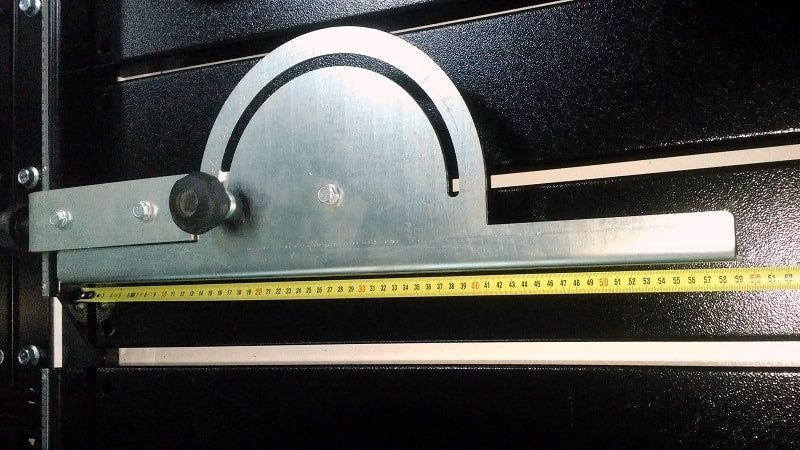

• Adjustable Angle Square: Improves cutting accuracy with adjustable angle guide (600 mm)
• Laser Guide: Projects blade cutting line for enhanced precision and alignment

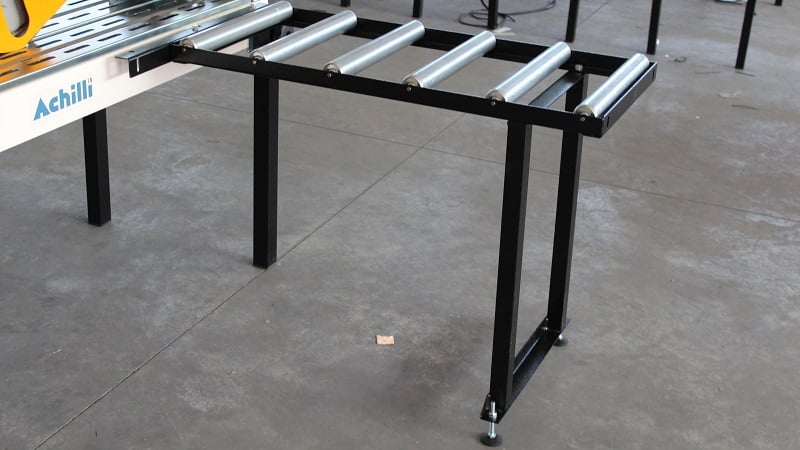

• Side Tables with Rollers: Facilitates smooth slab movement and material positioning (40 x 18 in. / 1000 x 458 mm)

The Achilli AFR-A combines power, precision, and versatility, making it an ideal solution for both small and large fabrication shops working with a wide range of materials.
