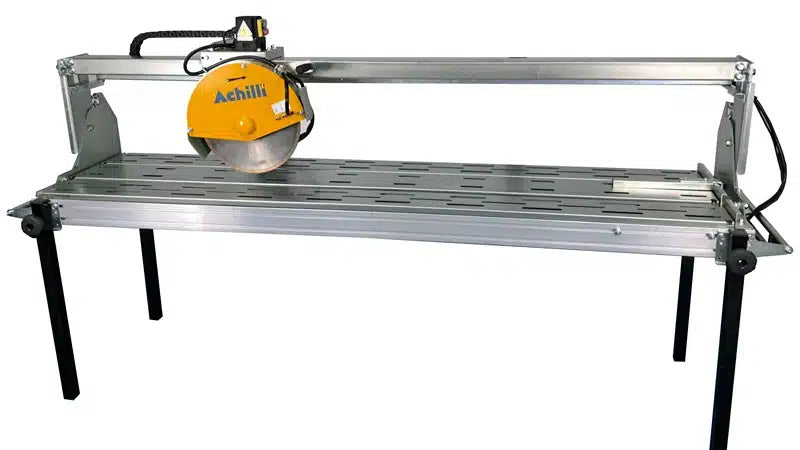

Achilli ALU PLUS Portable Bench Saw

Portable bench saw for tiles, stone, and building materials.

The Achilli ALU PLUS is a portable construction saw designed for precise cutting of tiles, stone, and various building materials. Built with a robust aluminum structure, it delivers consistent accuracy and long-lasting durability, making it ideal for demanding jobsite conditions.

Performance & Cutting Capacity

• Useful cut: 600–800–1000–1300–1500–2000 mm (2’ – 2’7” – 3’3” – 4’3” – 4’11” – 6’6”)
• Blade diameter: 250–300–350 mm (10”–12”–14”)
• Blade bore: 25.4 mm (1")
• Motor power: 2.2 kW (3 HP), single phase
• Motor speed: 2800 RPM (50Hz) / 3400 RPM (60Hz)
• Standard voltage: 230V – 50/60Hz

Precision Cutting Features

• Manual head feed system for smooth and controlled cutting
• Available in multiple cutting lengths from 600 mm to 2000 mm
• Manual bridge tilt for bevel cuts from 90° to 45°
• Plunge cutting mechanism for accurate depth adjustment

Worktable & Water System

The worktable is built with galvanized steel rails and includes integrated handles and a service square for improved usability and accuracy.

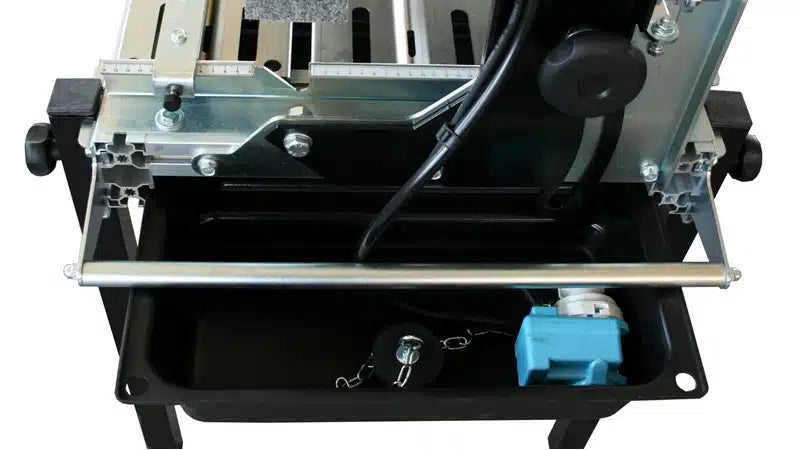

A removable ABS water tank is impact- and wear-resistant, easy to clean, and designed with a sludge separation area. The built-in recycling pump continuously cools the blade during operation for cleaner cuts and extended blade life.

Structure & Durability

Constructed with a high-strength extruded aluminum frame for excellent torsional rigidity, combined with a reinforced 100×60 mm pickled steel beam for added structural stability and long-term reliability.

Portability

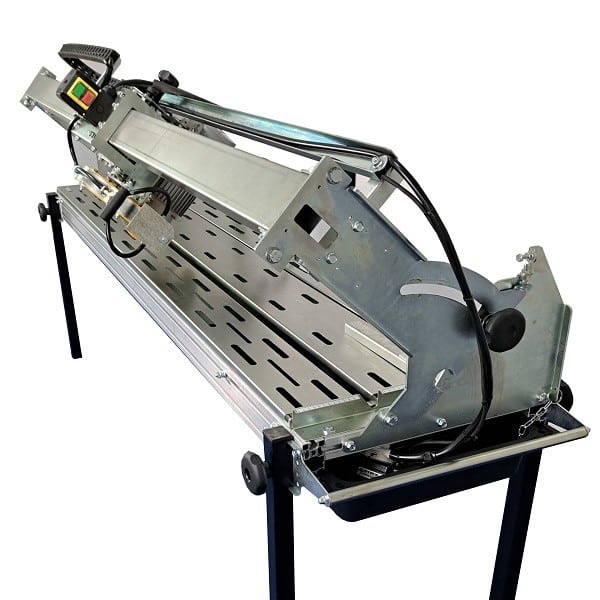

• Folding legs for quick setup and compact storage
• Side handles for easy transport and handling
• Designed for mobility across jobsites without sacrificing stability

Optional Accessories

• Laser Guide: Mounted on the head to clearly indicate the blade’s cutting line for improved accuracy
• Transportation Wheels: Optional wheels attach to the legs for easy movement around the shop
• Side Table: Compact extension table for easier slab handling (20 x 17 in. / 500 x 430 mm)

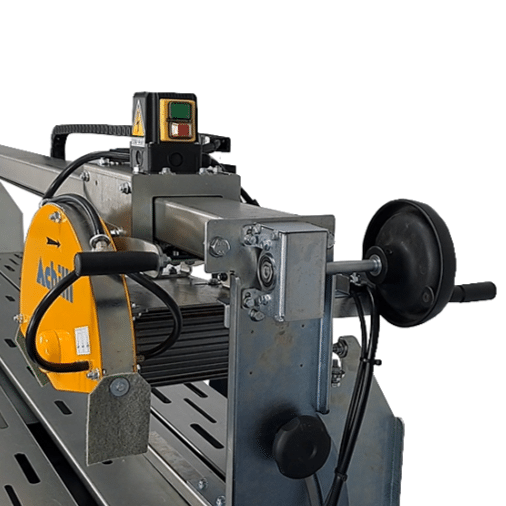

• Handwheel: Crank for longitudinal feed

The Achilli ALU PLUS delivers the perfect balance of precision, strength, and portability, making it a reliable solution for professionals working with tile, stone, and construction materials.
