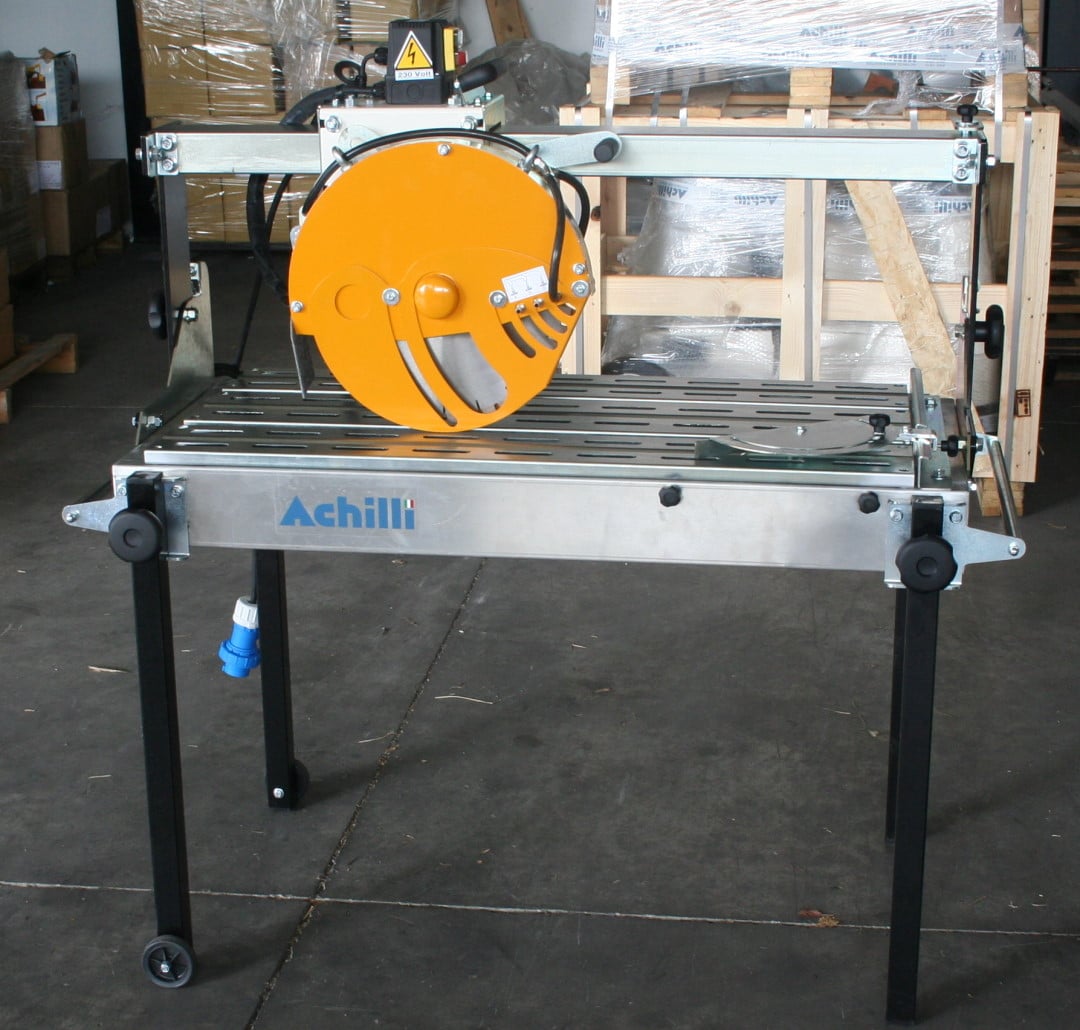

Achilli AMS Portable Bench Saw

Portable bench saw for tiles, stone, and building materials.

The Achilli AMS is a versatile and durable portable bench saw designed for cutting bricks, natural stone, marble, granite, and ceramic tiles. Built for jobsite performance, it features a sliding head system that delivers smooth, accurate cuts across a wide range of materials.

Performance & Cutting Capacity

• Useful cut: 600–800–1000–1300 mm (2’ – 2’7” – 3’3” – 4’3”)
• Blade diameter: 250–300–350 mm (10”–12”–14”)
• Blade bore: 25.4 mm (1")
• Motor power: 2 kW (2.7 HP), single phase
• Optional motor: 2.2 kW (3 HP) / 2.9 kW (4 HP)
• Standard voltage: 230V – 50Hz

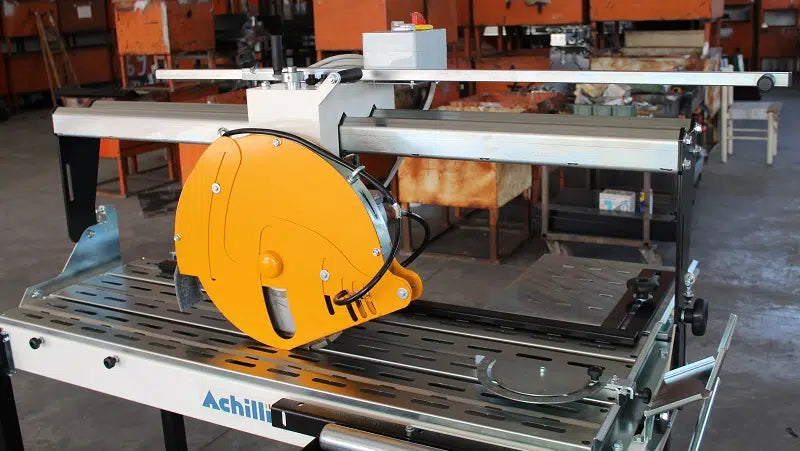

HT Version (High Performance)

The AMS HT version is a heavy-duty upgrade designed for higher capacity cutting applications. It supports larger blade diameters and increased power for demanding materials.

• Blade diameter: 400–450–500 mm (16”–18”–20”)
• Motor power: 3.6 kW (5 HP), three phase
• Optional motor: 2.2 kW (3 HP), single phase
• Standard voltage: 400V – 50Hz

Precision Cutting Features

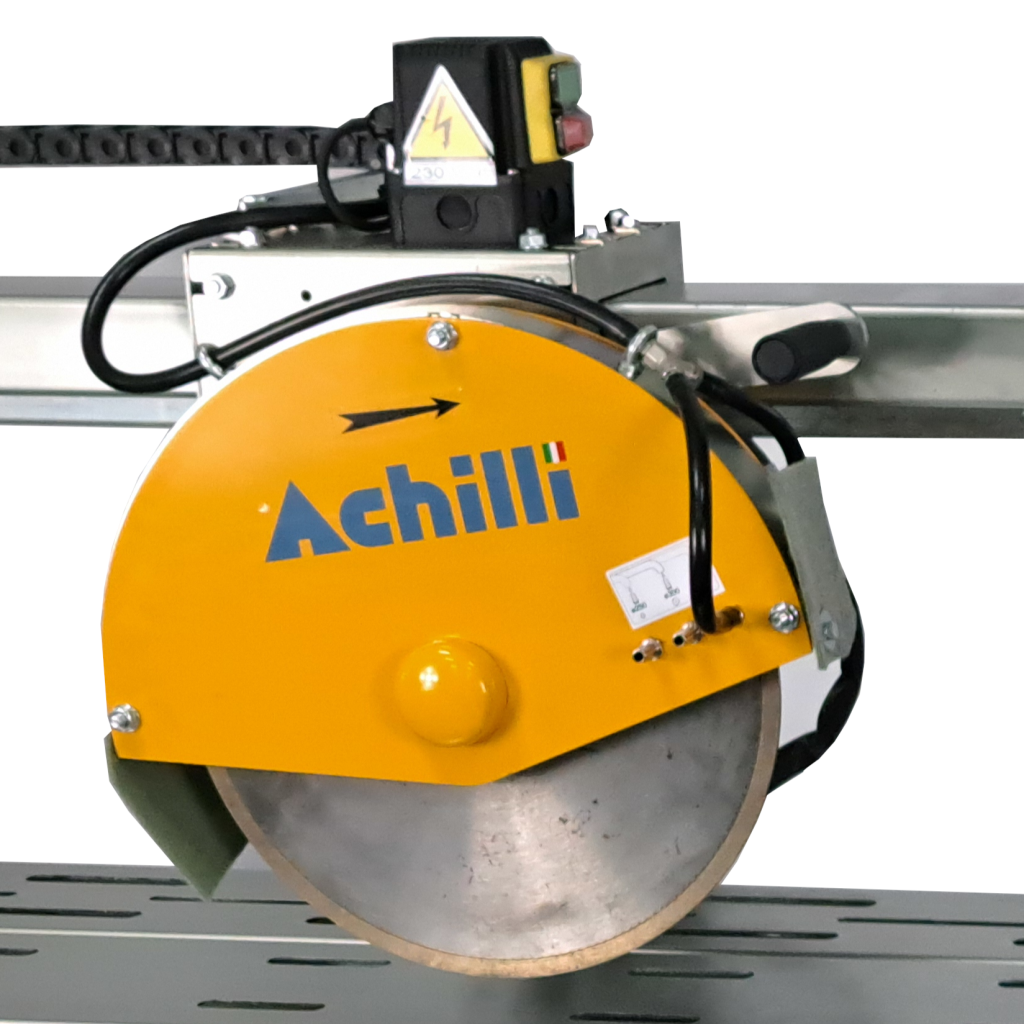

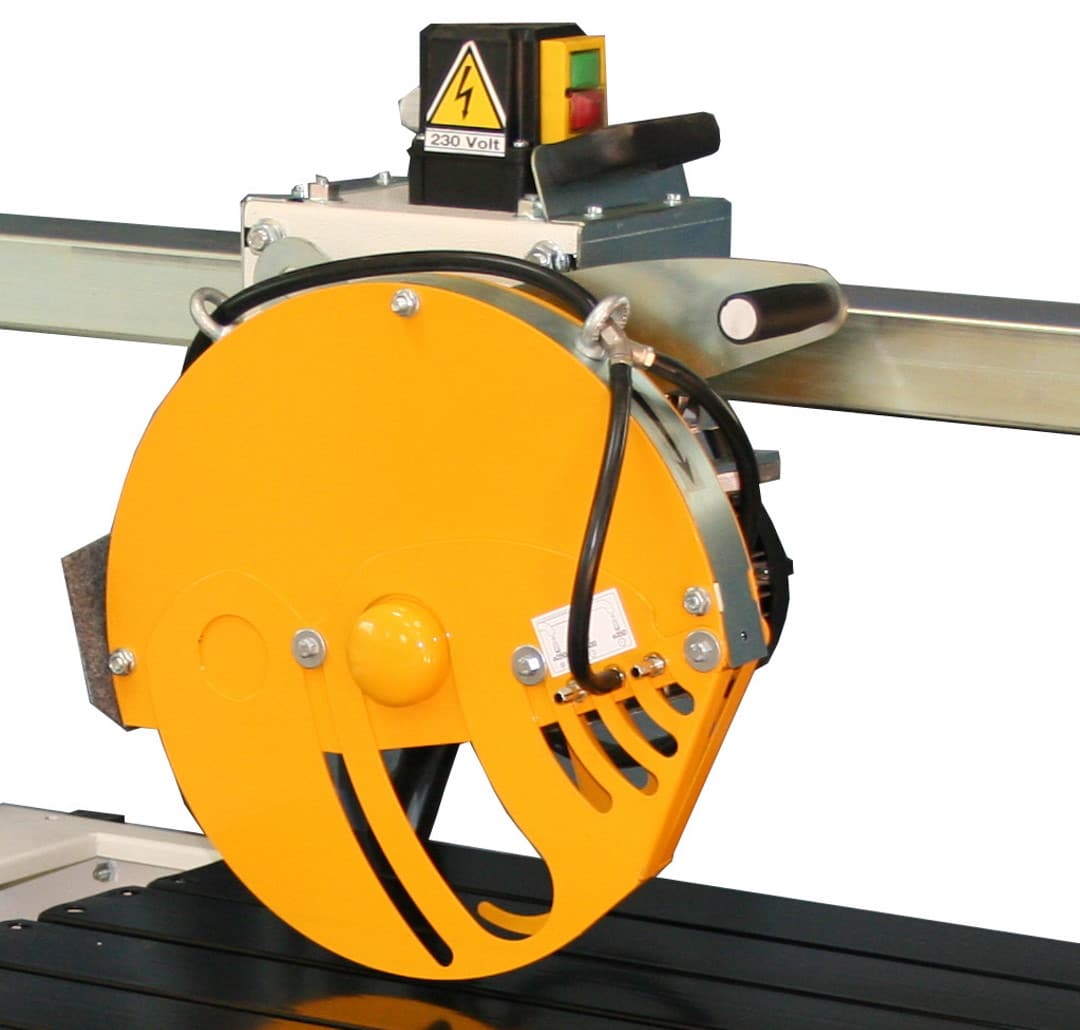

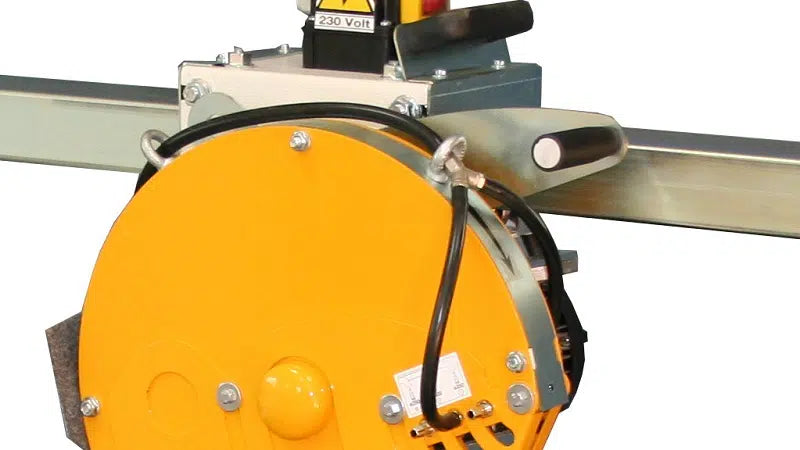

• Sliding head system for smooth and controlled cutting

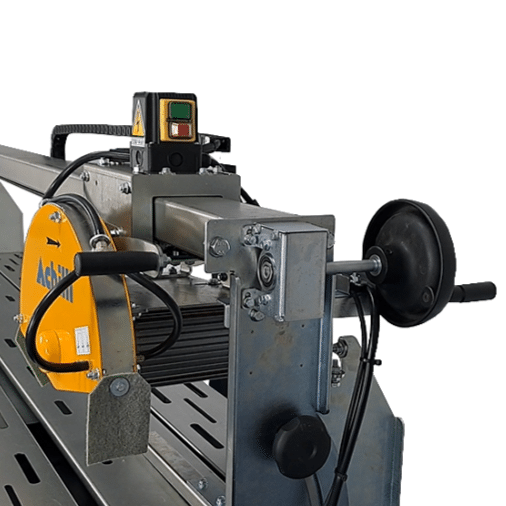

• Manual head feed with multiple cutting length options

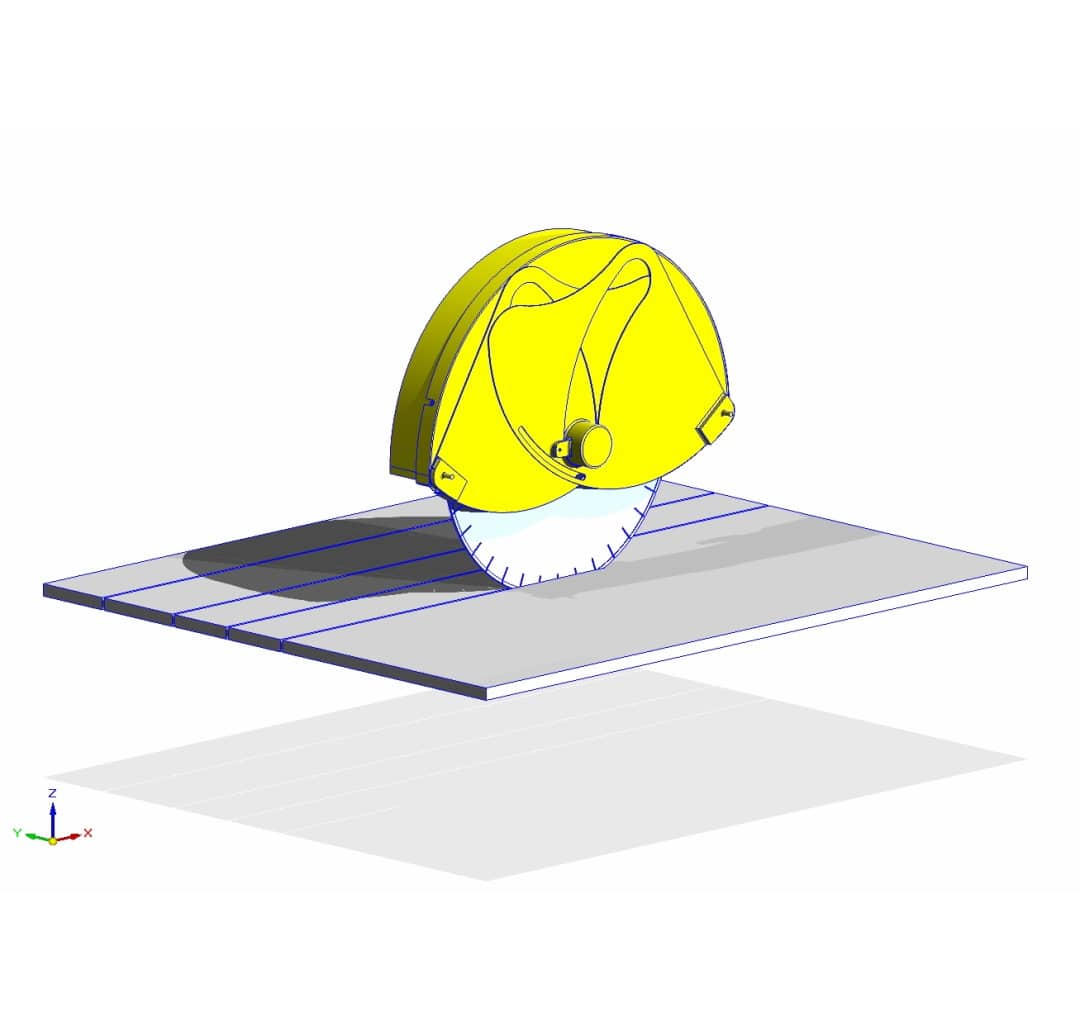

• Manual bridge tilt for bevel cuts from 90° to 45°

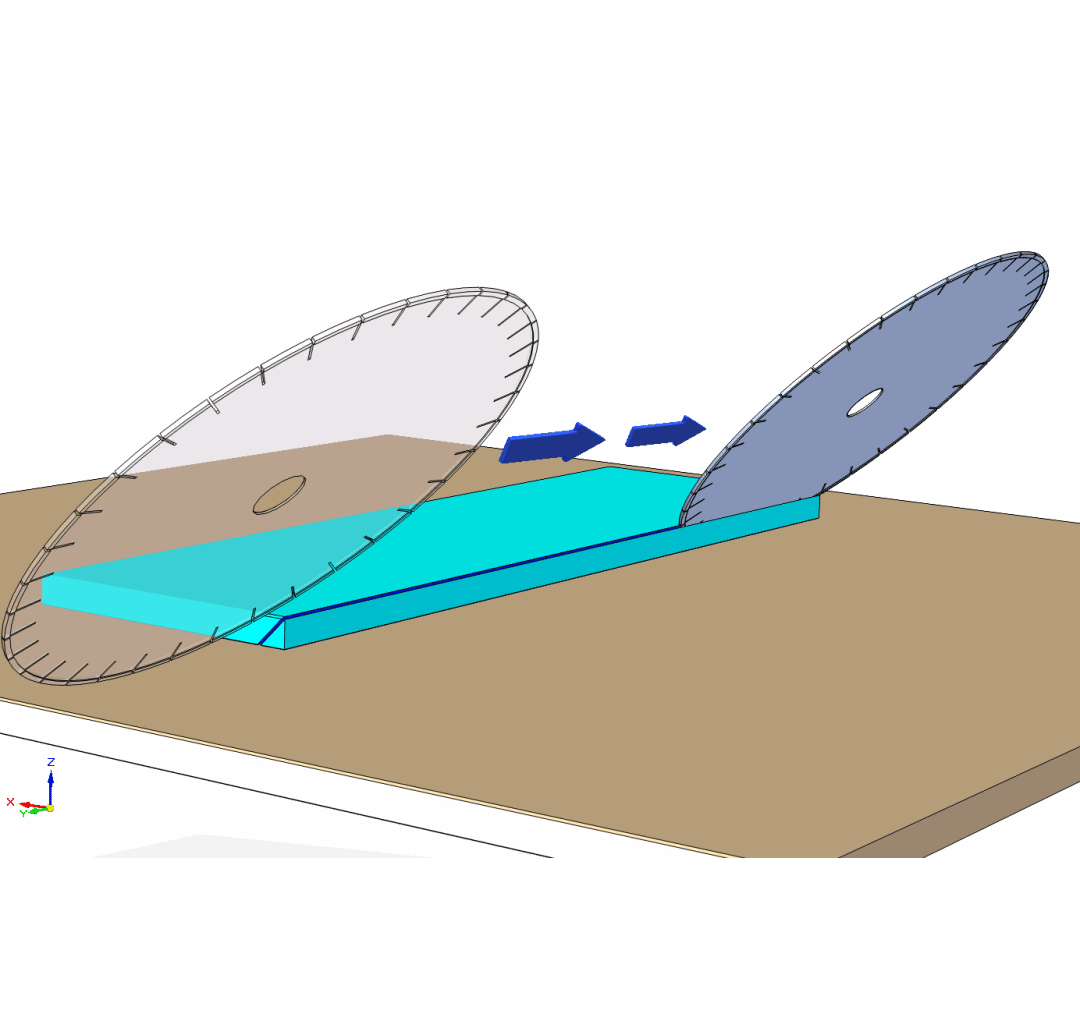

• Plunge cutting mechanism for precise depth adjustment

Worktable & Water System

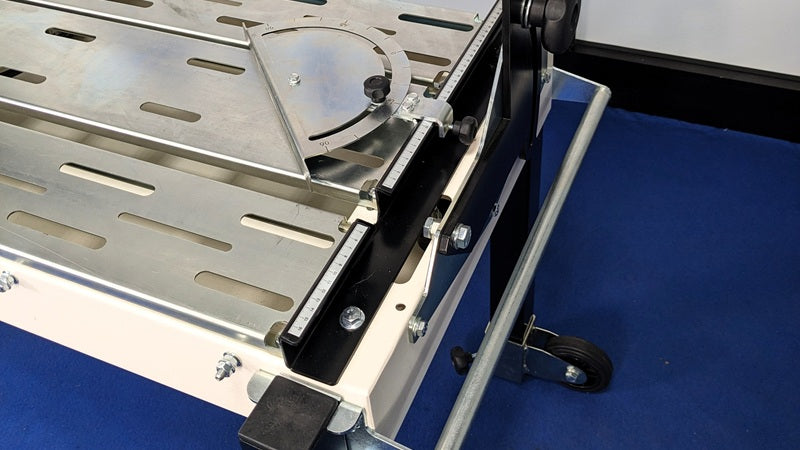

Worktable constructed with galvanized steel rails, available in widths of 25.5" (650 mm) or 21" (530 mm), with integrated handles and adjustable squaring bar for improved accuracy.

Self-contained water recycling tray with integrated pump ensures continuous blade cooling, cleaner cuts, and efficient water usage.

Structure & Durability

Built for demanding environments, the AMS features a robust frame designed to maintain stability, reduce vibration, and deliver consistent cutting precision over time.

Portability

• Folding legs for easy transport and quick setup
• Integrated transport handle for improved mobility
• Compact design suitable for jobsite use

Optional Accessories

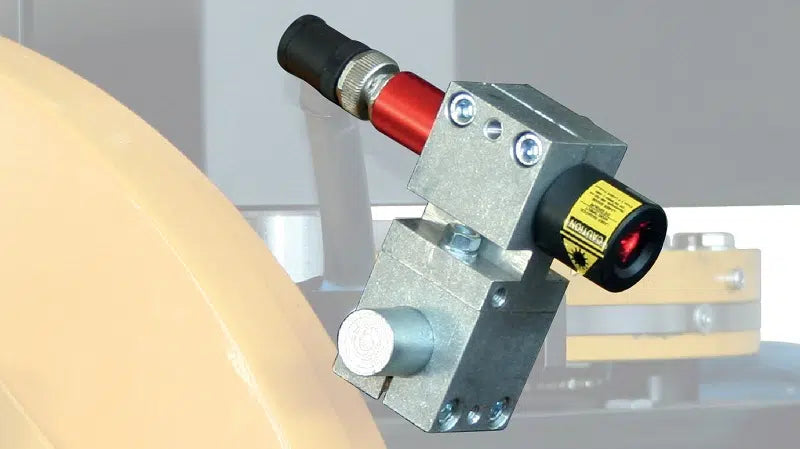

• Laser Guide: Indicates the blade’s cutting line for improved accuracy

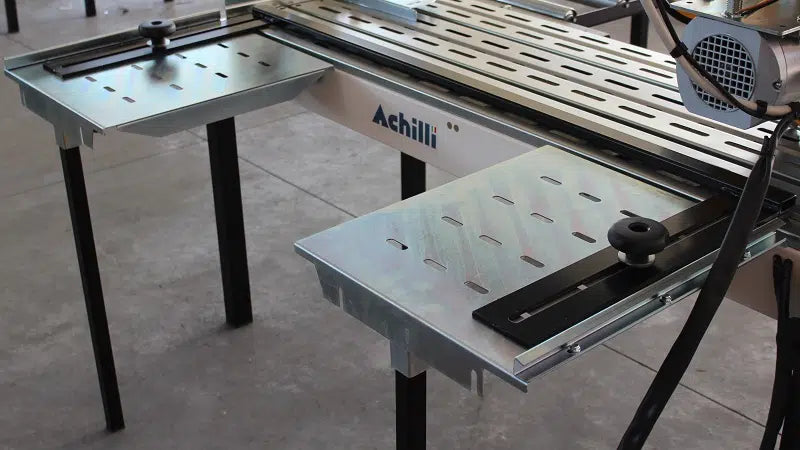

• Side Table: Provides additional support for handling larger materials

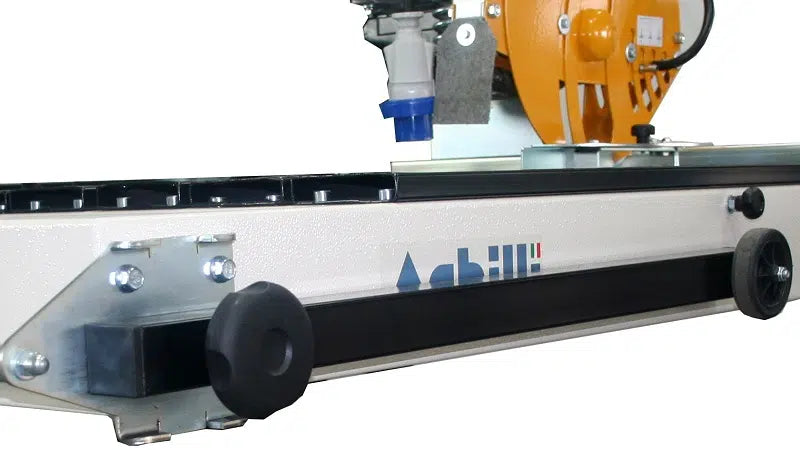

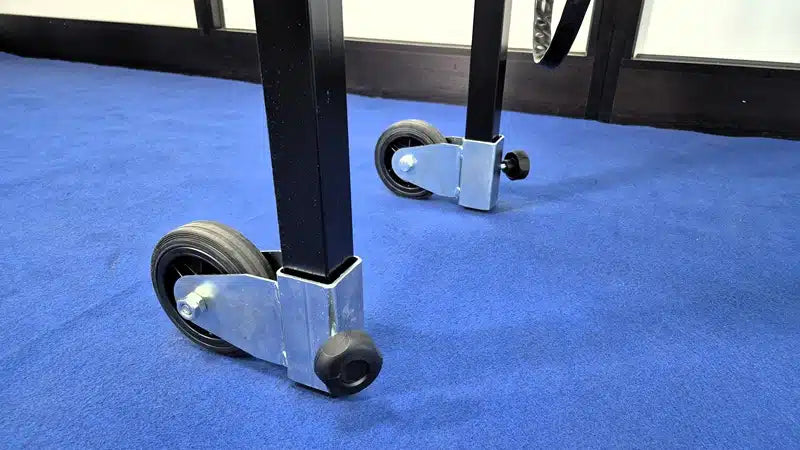

• Transportation Wheels: Attach to legs for easier movement around the shop
• HT Version Upgrade: High-performance configuration for larger blades and increased cutting power

The Achilli AMS combines precision, versatility, and durability, making it a reliable solution for professionals cutting tiles, stone, and construction materials on-site.
