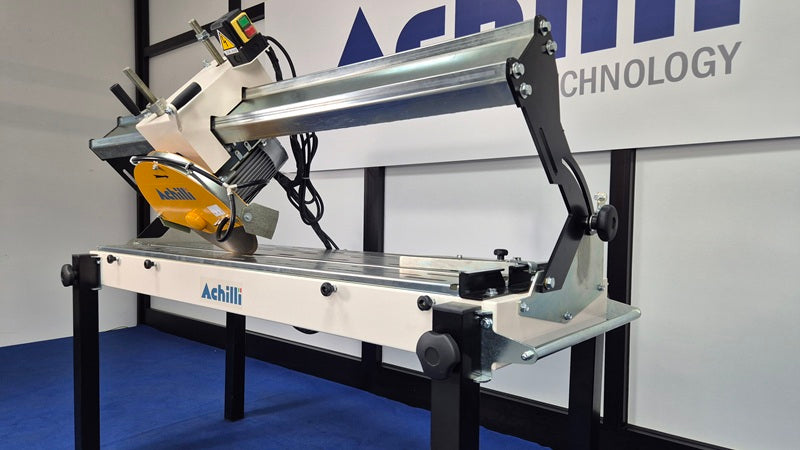

Achilli ANR Portable Stone Saw

Cutting and profiling machine for stone, marble, and granite.

The Achilli ANR is a powerful and versatile portable saw designed for precision cutting of marble, granite, and stone slabs. Built with a sturdy structure and engineered for accuracy, it delivers clean, consistent cuts while offering expanded functionality with optional profiling capabilities.

Performance & Cutting Capacity

• Useful cut: 600–800–1000–1300–1500–2000 mm (2’ – 2’7” – 3’3” – 4’3” – 4’11” – 6’6”)
• Blade diameter: 250–300–350 mm (10”–12”–14”)
• Blade bore: 25.4 mm (1")

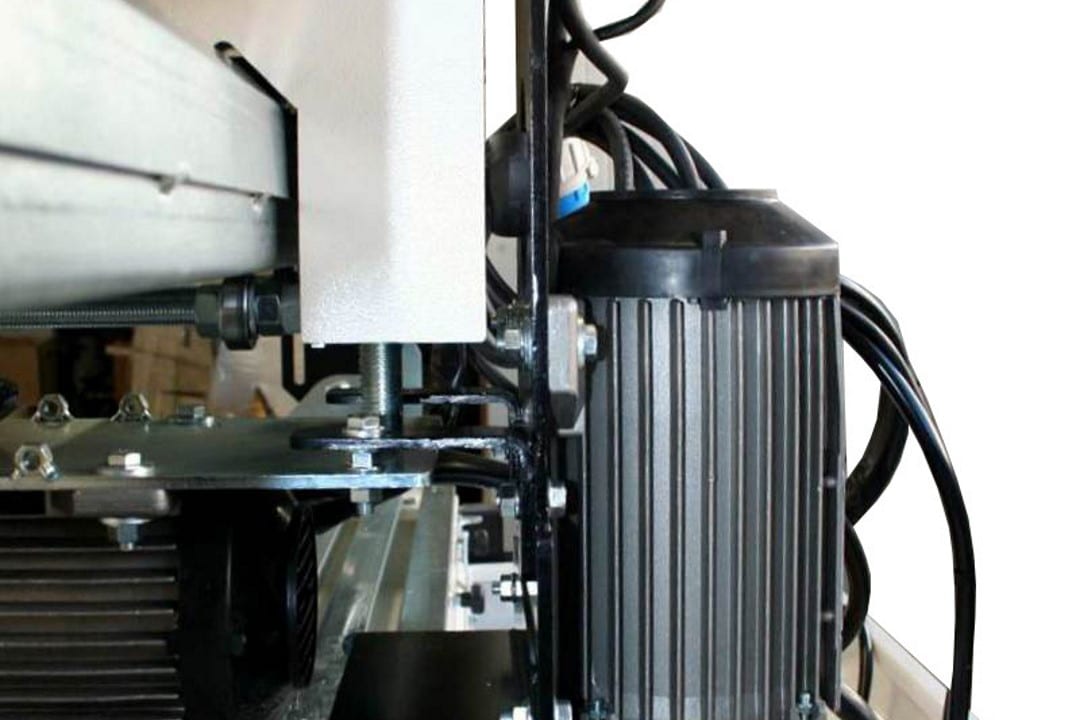

• Motor power: 2.2 kW (3 HP), single phase / 3 kW (4 HP), three phase
• Standard voltage: 230V – 50/60Hz / 400V – 50/60Hz

HT Version (High Thickness)

The ANR HT version is designed for heavy-duty applications, allowing the use of larger blades and increased power for cutting thicker slabs and demanding materials.

• Blade diameter: 400–450–500 mm (16”–18”–20”)
• Motor power: 3.7 kW (5 HP), three phase
• Blade bore: 25.4 / 30 mm (1")
• Standard voltage: 400V – 50/60Hz

Precision Cutting Features

• Special beam design for enhanced stability and cutting accuracy
• Manual head feed with multiple cutting length options

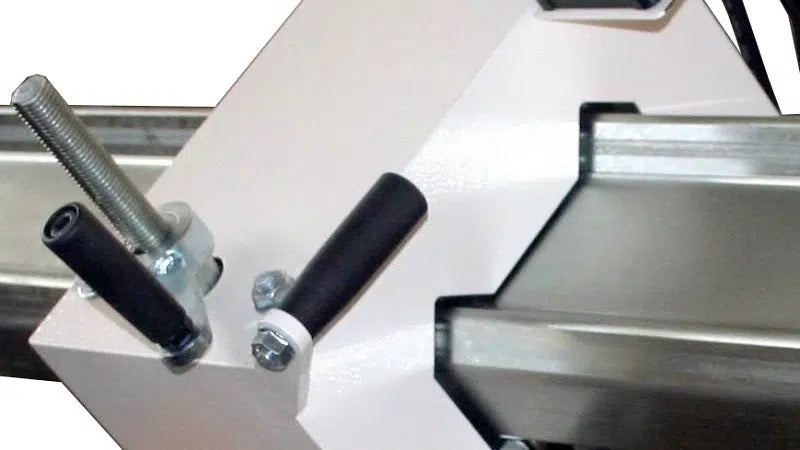

• Bridge tilt for bevel cutting from 90° to 45°
• Hand wheel system for precise cutting depth adjustment

Worktable & Water System

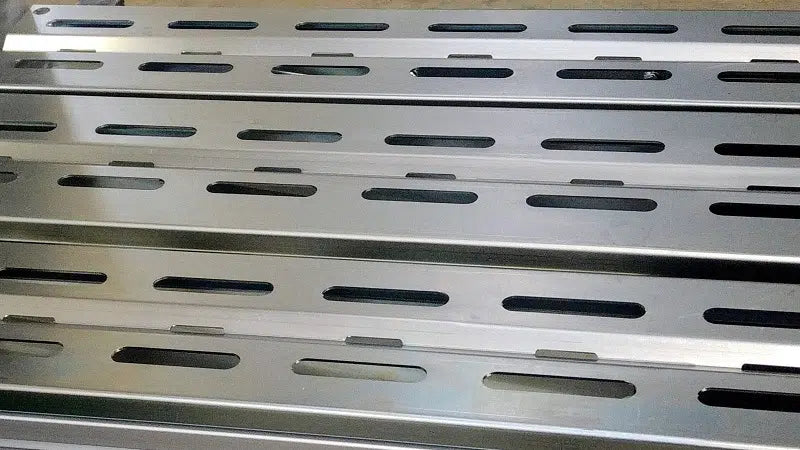

Worktable constructed with galvanized steel rails and integrated service square for improved alignment and precision.

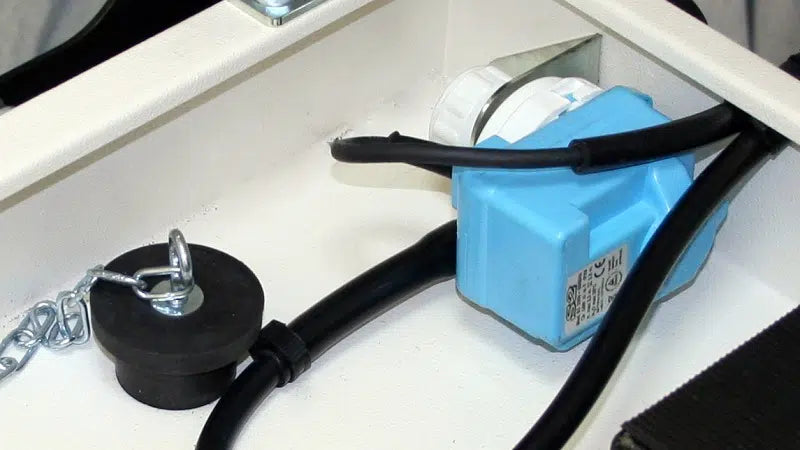

Water tank with built-in recycling pump ensures continuous blade cooling, cleaner cuts, and efficient water usage.

Structure & Durability

Built for professional use, the ANR features a rigid and durable structure designed to minimize vibration and maintain consistent cutting performance over time.

Portability

• Folding legs for easy transport and setup
• Compact design suitable for jobsite and workshop use
• Optional extension tables for improved slab handling

Optional Accessories

• Laser Guide: Indicates the blade’s cutting line for improved accuracy

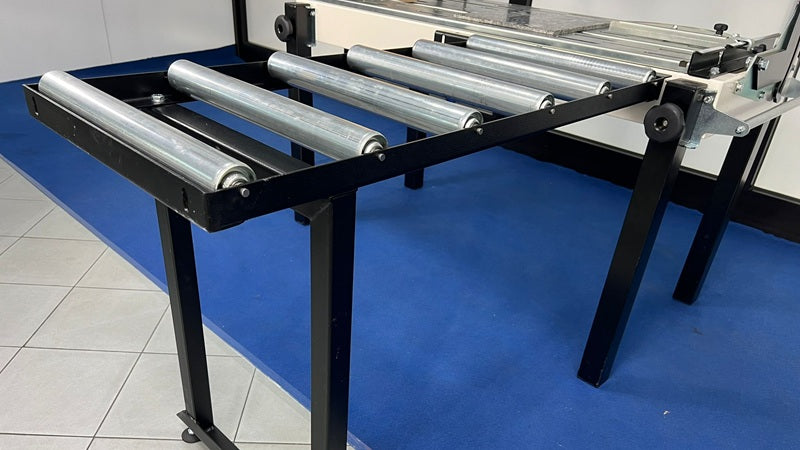

• Side Tables with Rollers: Facilitate smooth slab movement during cutting

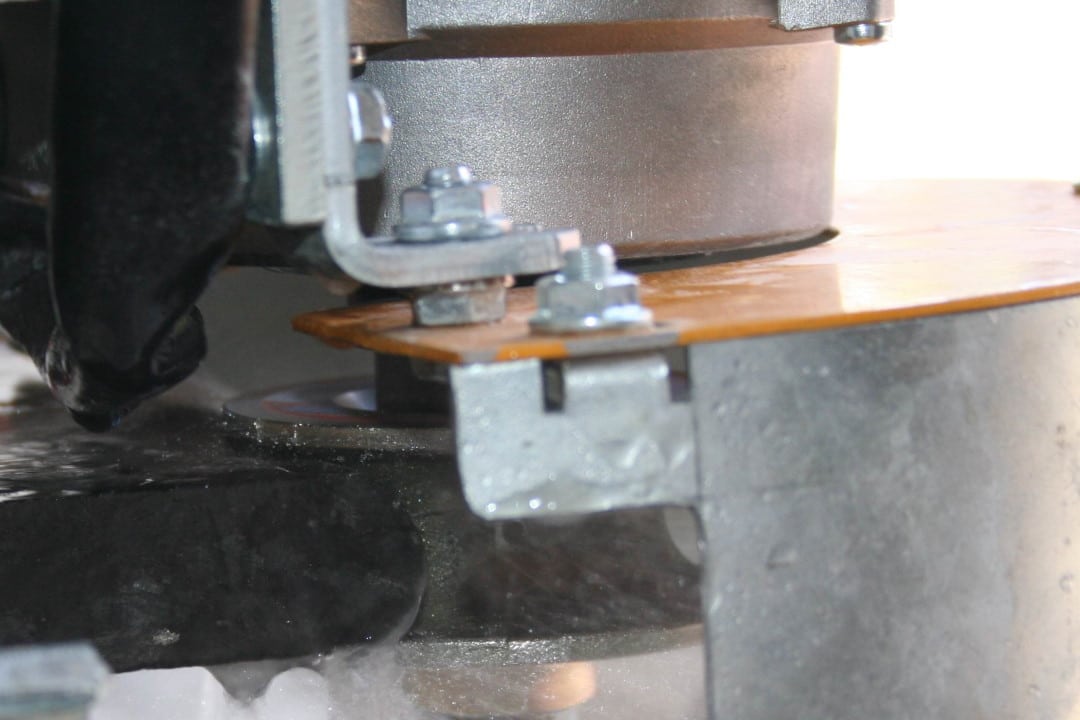

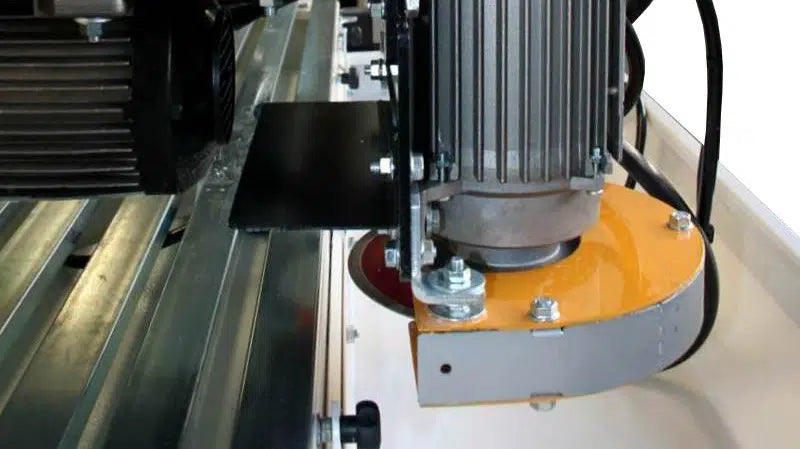

• Slot Profiling Device: Enables horizontal cutting, slotting, and edge profiling with shaped wheels
• HT Version Upgrade: High-thickness configuration for larger blades and increased cutting power
• Galvanized Water Tank: Enhanced corrosion resistance and durability

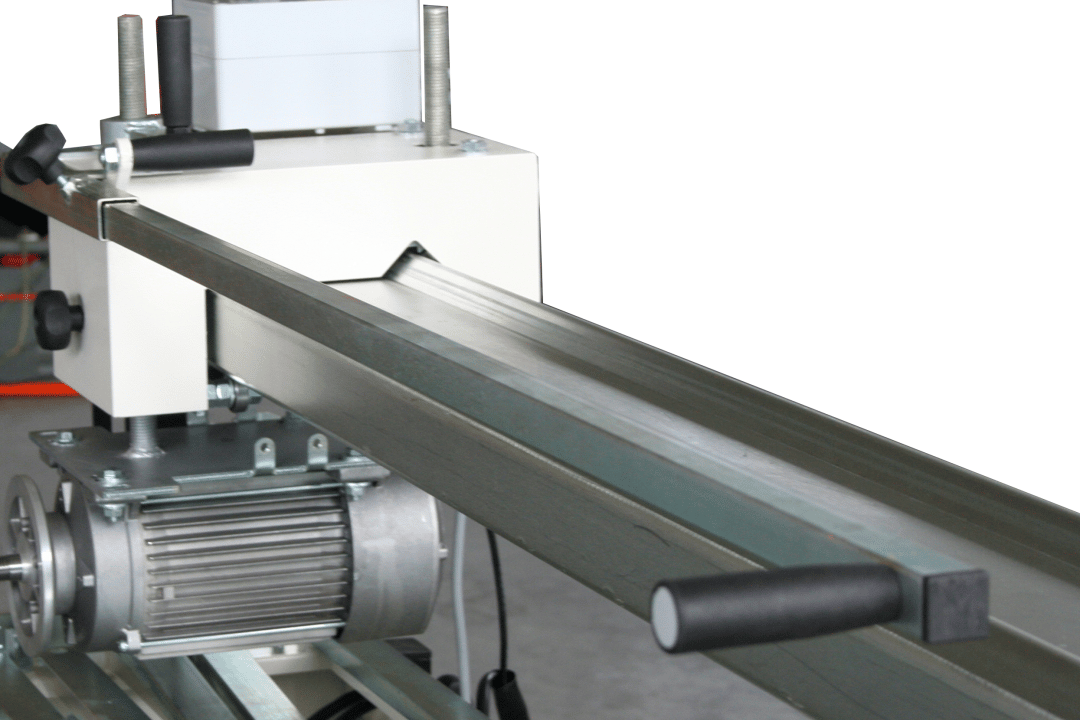

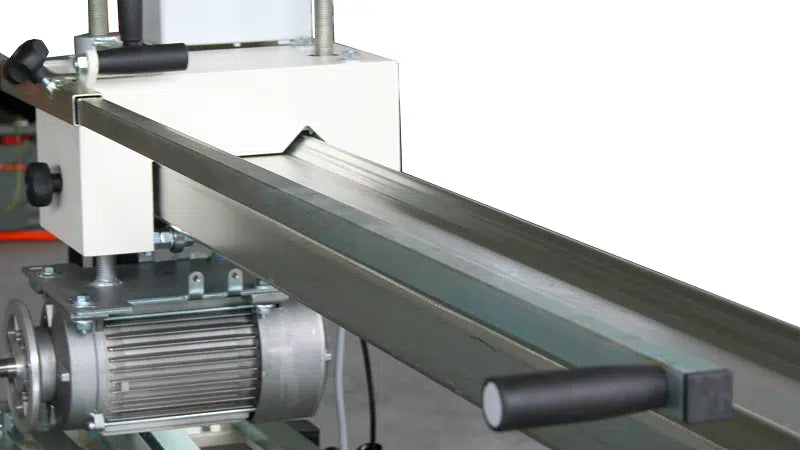

• Pull Handle: Improves head movement control during cutting

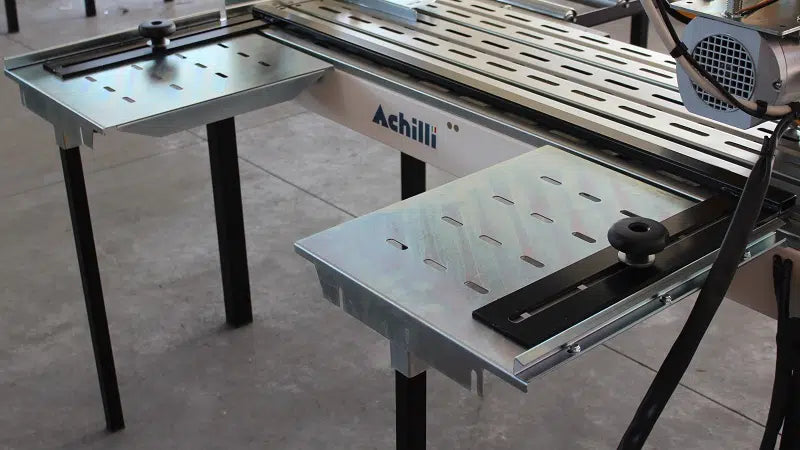

• Side Tables with Side Stop: Provides added support and precision when processing slabs

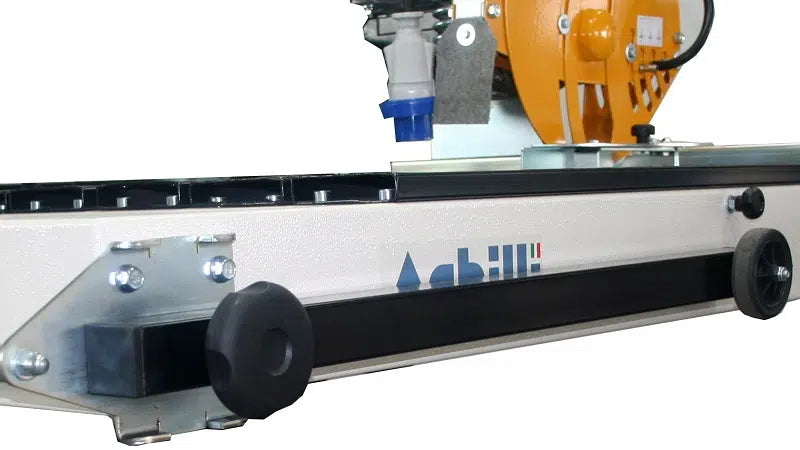

• Transportation Wheels: Attach to legs for easier mobility around the shop

The Achilli ANR combines precision cutting, profiling capability, and rugged durability, making it a versatile solution for professionals working with marble, granite, and stone slabs.
