Achilli SC500 Slab Cart

Hydraulic motorized slab trolley for lifting and positioning stone slabs.

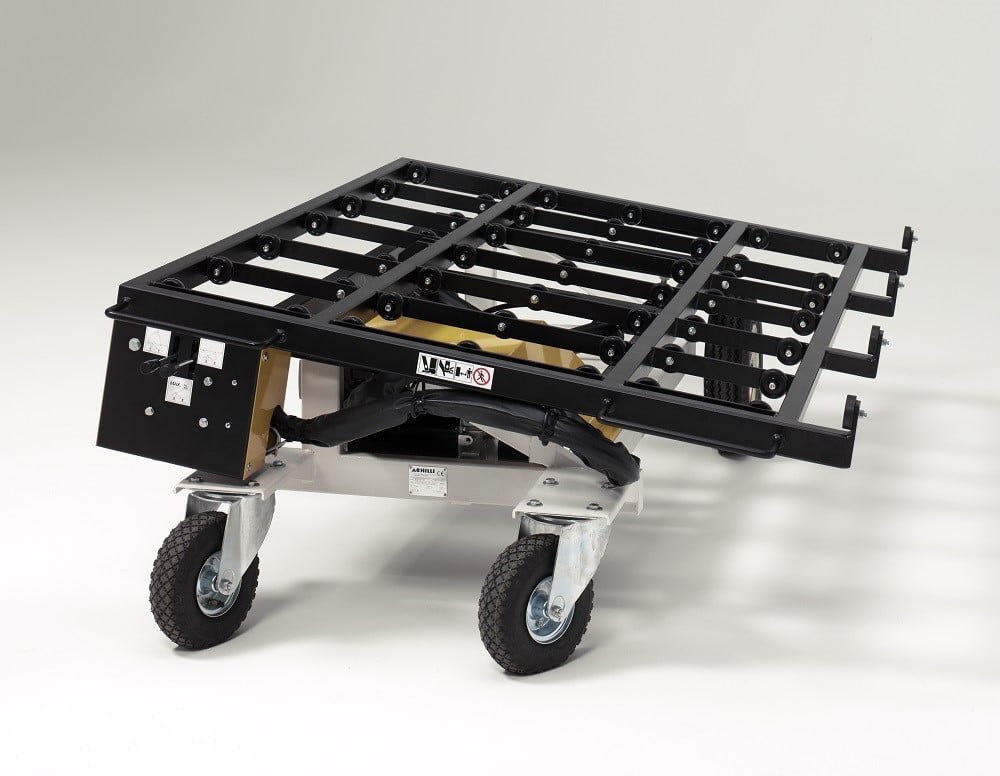

The Achilli SC500 is a battery-powered hydraulic slab cart designed to safely lift, transport, and position heavy stone slabs around the shop and onto worktables. Built for efficiency and ease of use, it reduces manual handling while improving workflow and safety in fabrication environments.

Performance & Capacity

• Load capacity: 1100 lbs (500 kg)
• Worktop size: 1380 × 2000 mm (54" × 79")
• Adjustable working height: 650 – 960 mm
• Powered by rechargeable battery

Lifting & Handling Features

• Hydraulic motorized lifting system for smooth and controlled operation

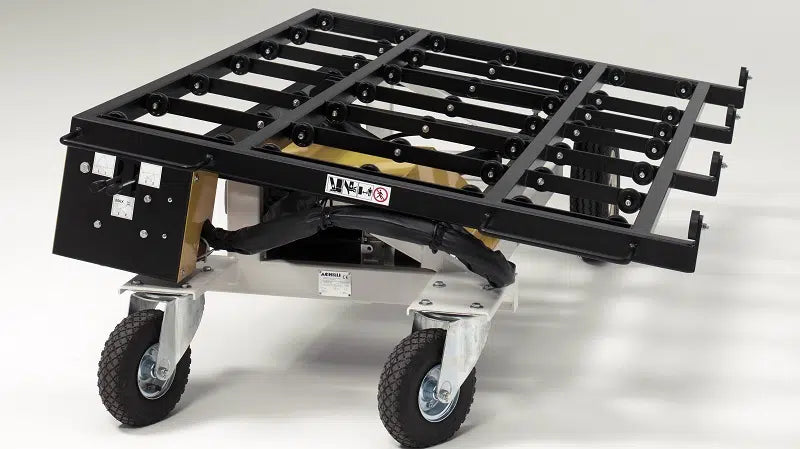

• Adjustable worktop height for ergonomic slab positioning

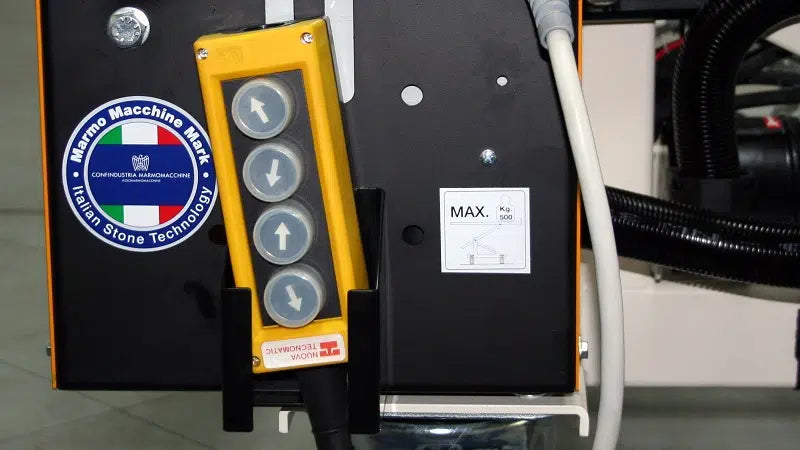

• Controlled via levers or corded pendant control unit
• Designed to safely handle and position large slabs

Worktop

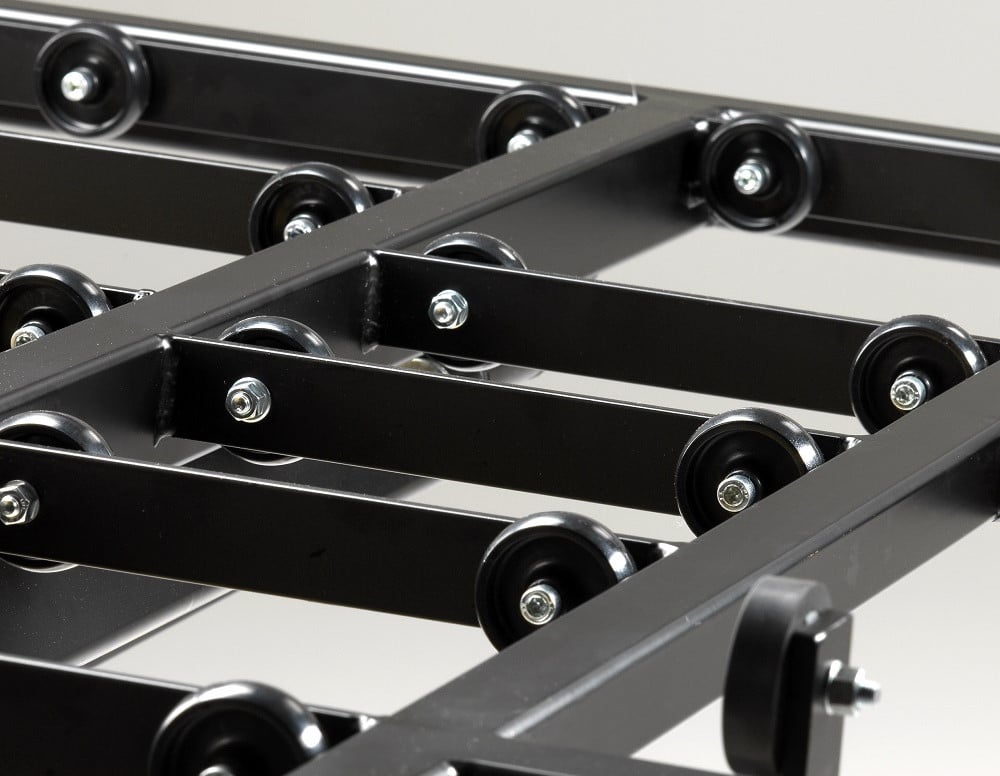

Large work surface fitted with durable plastic rollers, allowing easy slab loading and off-loading while minimizing surface friction and material damage.

Telescopic Panel

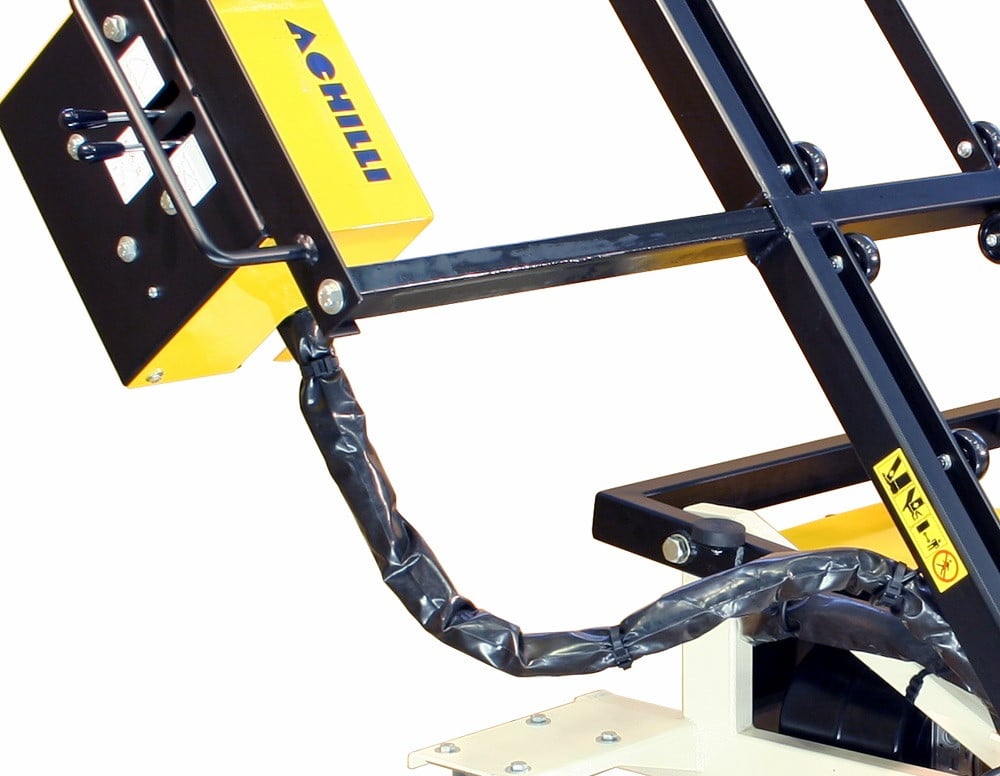

Extendable telescopic panel provides easy access to control levers when handling oversized slabs, improving usability and operator control.

Structure & Mobility

• Sturdy steel frame designed for stability and long-term durability
• Equipped with 4 pneumatic wheels, including 2 pivoting wheels for maneuverability
• Compact and mobile design for easy movement around the shop

Optional Configurations

• SC500 LC: Standard lifting configuration

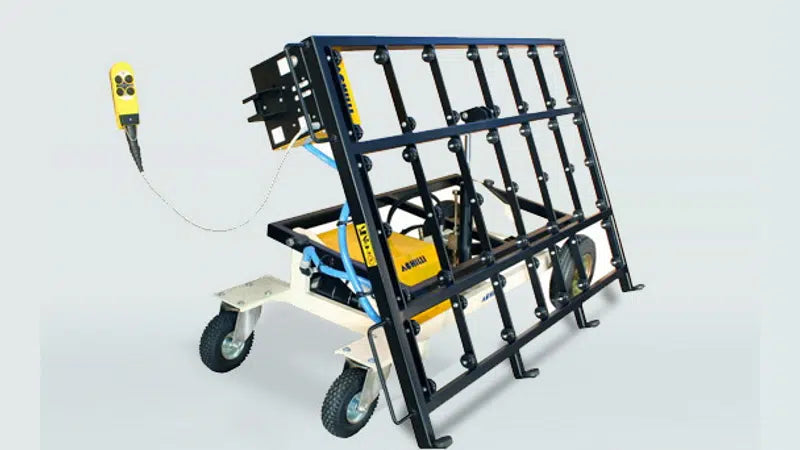

• SC500 PC: Alternative configuration for specific handling needs

The Achilli SC500 improves safety, efficiency, and workflow in stone fabrication shops by simplifying the handling of heavy slabs and reducing manual labor.
