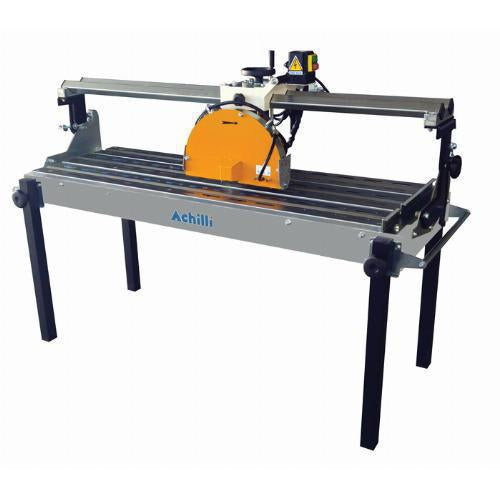

Achilli TAG Portable Bench Saw

Portable bench saw with sliding head for tiles, stone, and building materials.

The Achilli TAG is a durable and versatile portable saw designed for cutting tiles, stone slabs, and a wide range of building materials. Featuring a sliding head system and rugged construction, it delivers smooth, accurate cuts and reliable performance on demanding construction sites.

Performance & Cutting Capacity

• Useful cut: 600–800–1000–1300–1500–2000 mm (2’ – 2’7” – 3’3” – 4’3” – 4’11” – 6’6”)
• Blade diameter: 250–300–350 mm (10”–12”–14”)
• Blade bore: 25.4 mm (1")
• Motor power: 2 kW (2.7 HP), single phase
• Optional motor: 2.9 kW (4 HP), three phase
• Standard voltage: 230V – 50Hz

Precision Cutting Features

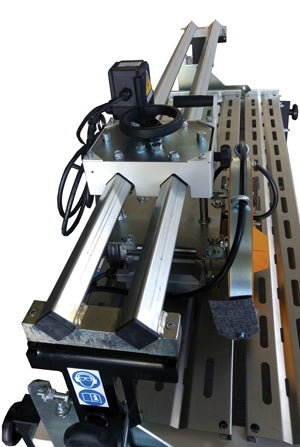

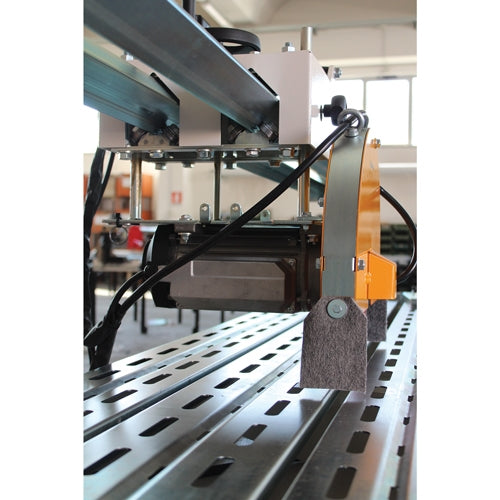

• Sliding head system for smooth and controlled cutting
• Manual head feed with multiple cutting length options

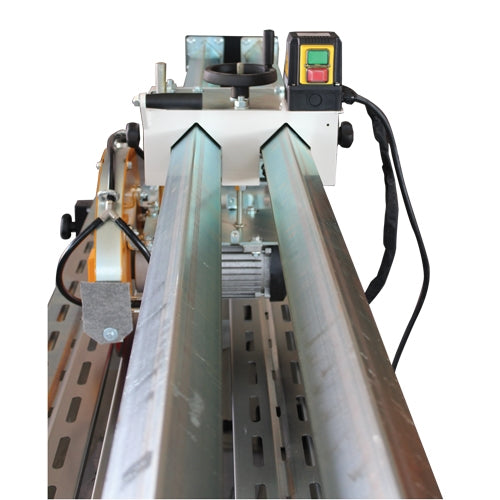

• Double rhomboid beam design for enhanced stability and cutting accuracy
• Manual bridge tilt for bevel cuts from 90° to 45°
• Hand wheel adjustment for precise cutting depth control

Worktable & Water System

The worktable is constructed with galvanized steel rails and includes a service square for improved cutting accuracy and alignment.

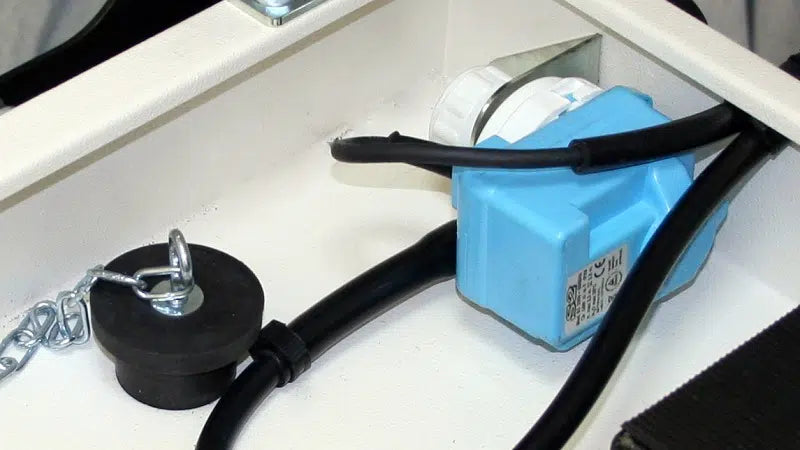

A self-contained water recycling tray with integrated pump continuously cools the blade during operation, ensuring cleaner cuts and efficient water usage.

Structure & Durability

Built for jobsite performance, the TAG features a sturdy frame with a double rhomboid beam system that enhances rigidity, reduces vibration, and maintains consistent cutting precision over time.

Portability

• Folding legs for quick setup and compact transport
• Integrated transport handle for easy handling
• Designed for mobility without sacrificing stability

Optional Accessories

• Laser Guide: Mounted on the head to clearly indicate the blade’s cutting line for improved accuracy
• Side Tables with Rollers: Extension tables with rollers to facilitate smooth slab movement (40 x 18 in. / 1000 x 458 mm)
• Galvanized Water Tank: Painted and galvanized tank for maximum rust resistance and durability
• Side Tables with Side Stop: Provides additional slab support during cutting for faster and more precise processing

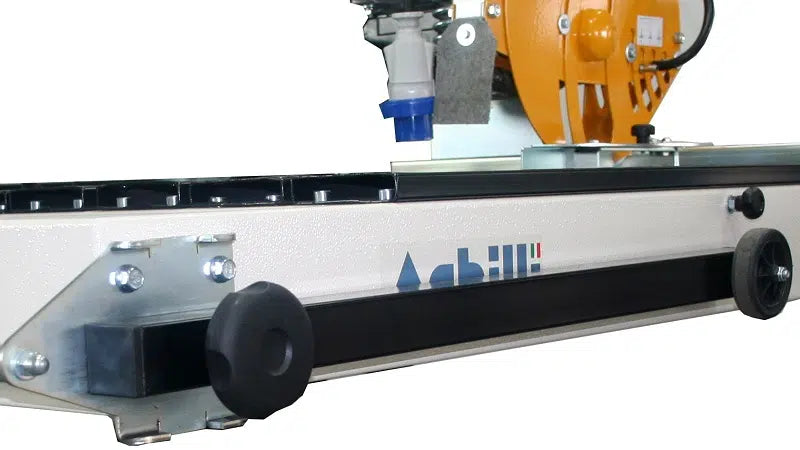

• Transportation Wheels: Optional wheels attach to the legs for easy movement around the shop

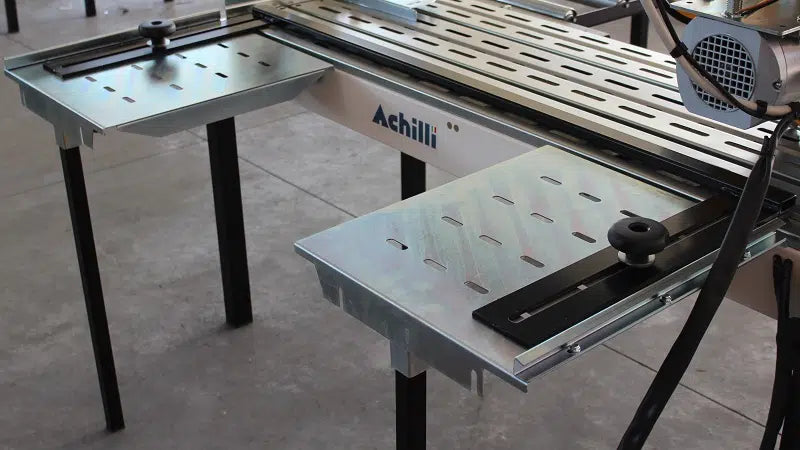

• Side Table: Compact extension table for easier slab handling (20 x 17 in. / 500 x 430 mm)

The Achilli TAG combines strength, precision, and portability, making it a dependable solution for professionals cutting tiles, stone, and construction materials on-site.
