Achilli TOP Manual Working Center

Multipurpose machine for kitchen and bathroom countertops.

The Achilli TOP is an all-in-one manual working center designed for fabricating countertops with precision and efficiency. It allows operators to perform sink cut-outs, shaping, polishing of internal and external contours, drilling, and recess drains without moving the slab, making it an ideal solution for shops looking to reduce production time and investment costs.

Performance & Working Capacity

• X axis travel: 3200–3950 mm
• Y axis travel: 780–1200–1600 mm
• Z axis travel: 150 mm
• Main motor power: 3.3 kW (4.5 HP)
• Main motor rotation speed: 1500 / 10000 RPM
• Standard voltage / frequency: 230V – 50/60Hz, single phase

Multipurpose Fabrication Features

• Performs sink cut-outs, shaping, polishing, drilling, and recess drains on one machine
• Processes the entire piece without needing to reposition the slab
• Manual working center designed to deliver results similar to a CNC machine
• Simple operation with minimal training required
• Ideal for small shops and growing factories looking to reduce labor time and investment

Structure

Galvanized steel frame and worktop built for long-term durability, rigidity, and consistent performance in fabrication environments.

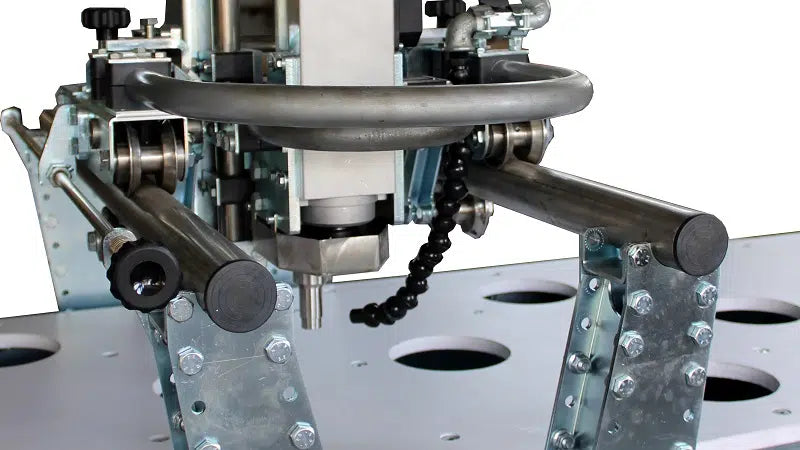

Head Motion

Head travel runs on stainless steel guides and wheels, with adjustable mechanical limit switches for controlled motion. Spindle movement along the Y and Z axes is adjusted manually with micrometric precision using hand wheels.

Edge Profiling & Polishing

Designed for shaping and polishing straight and contoured edges using shaped wheels or CNC tools.

• Maximum shaped wheel height: 4" (100 mm)
• Maximum wheel diameter: 4.75" (120 mm)
• Compatible with CNC tools and shaped wheels for manual routers

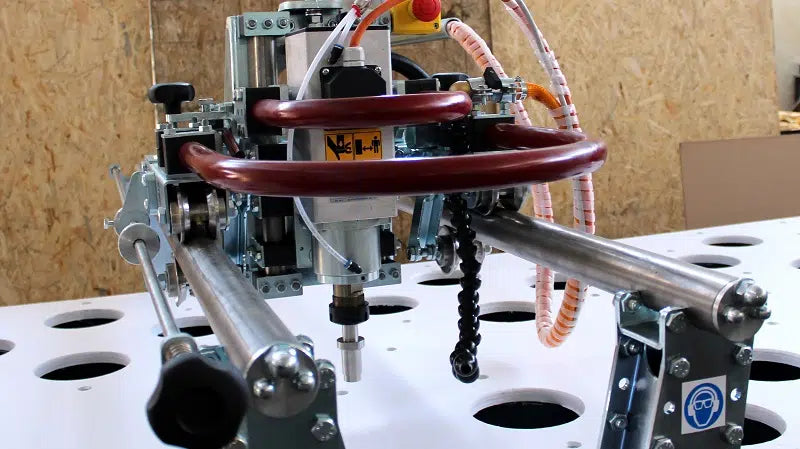

Drilling

Supports drilling applications for countertop fabrication with a maximum core drill diameter of 3" (80 mm) and maximum tool length of 80 mm.

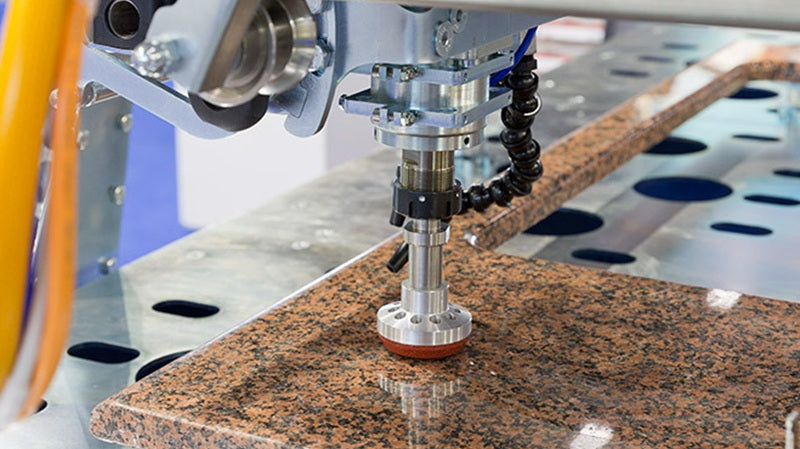

Surface Polishing

Suitable for polishing surfaces and straight edges using pads with a maximum diameter of 4.5" (115 mm).

Optional Accessories

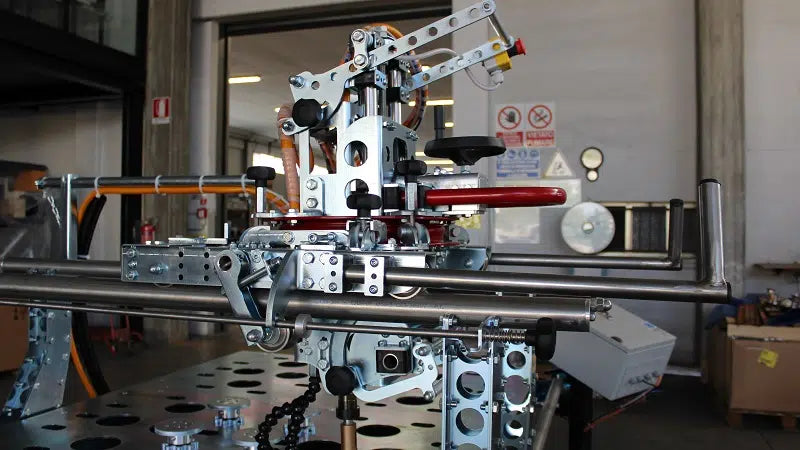

• Quick Drill: Fast Z-axis motion by lever with 1.5" (40 mm) stroke for plunge cuts and drill bits

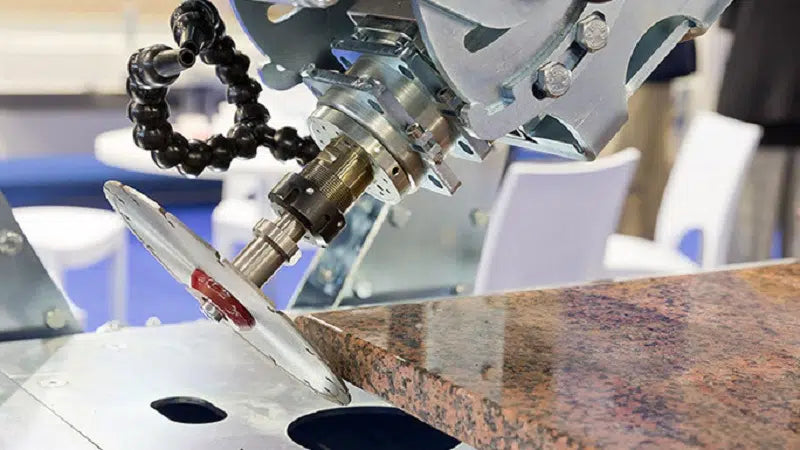

• Disc Holder: Allows head rotation in 4 positions (0°, 90°, 180°, 270°) and mounting of a diamond blade up to 8" (200 mm) for cutting and mitering along the X and Y axes

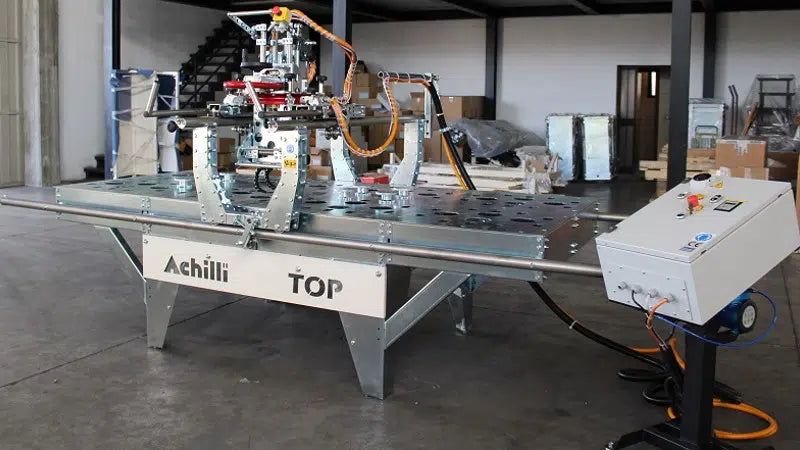

• Larger Version: Extended machine configuration with increased travel along the X and Y axes for larger workpieces

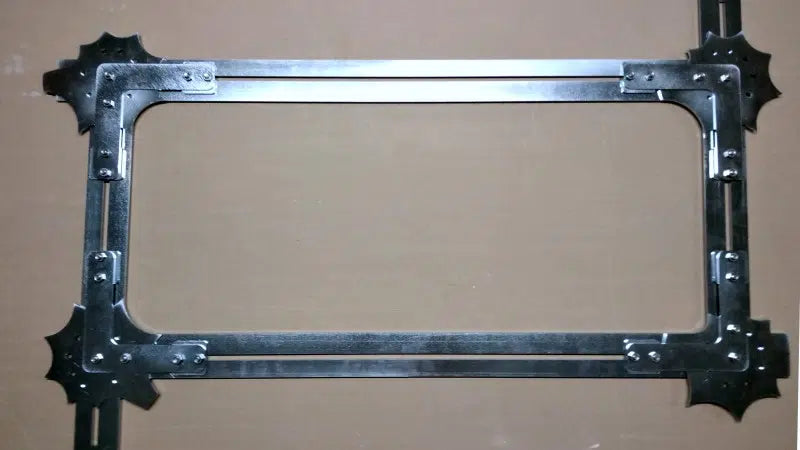

• Modular Template: Straight, curve, and oval template system for sink cut-outs

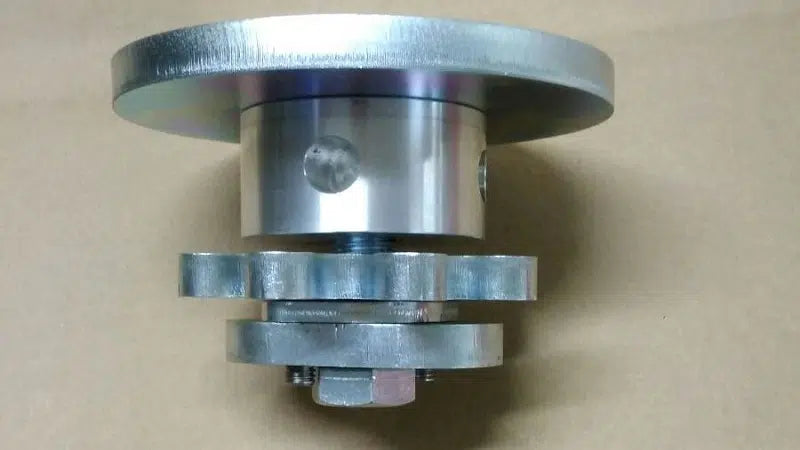

• Piece Holder: Adjustable support for slab lifting and positioning

The Achilli TOP combines multiple fabrication functions into one efficient manual working center, making it a smart solution for countertop shops seeking precision, versatility, and lower production costs.
