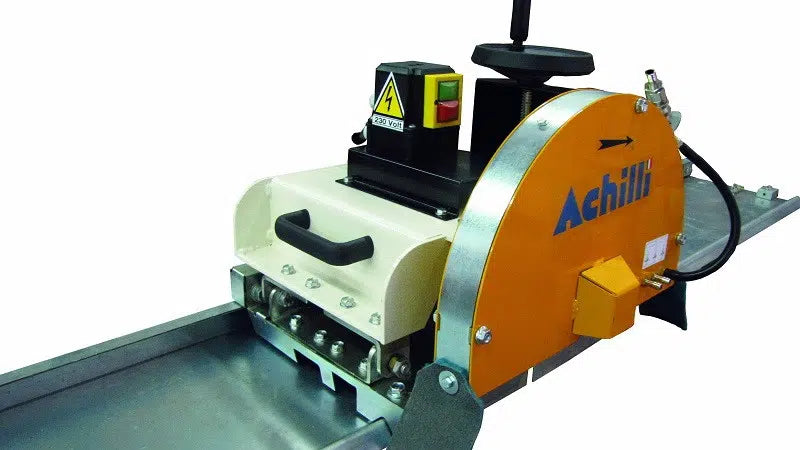

Achilli TSA Portable Track Saw
Portable track saw for on-site straight cutting of stone slabs.
The Achilli TSA is a lightweight and highly portable track saw designed for precise straight cuts directly on large stone slabs. Featuring a modular rail system and compact design, it allows fabricators to achieve professional results on-site with minimal setup.
Performance & Cutting Capacity
- Rail length options: 3 × 1250 mm (12’ total) / 2500 mm (8’) / 4000 mm (13’)
- Blade diameter: 300–350 mm (12”–14”)
- Blade bore: 25.4 mm (1")
- Motor power: 2.2 kW (3 HP), single phase
- Standard voltage: 230V – 50/60Hz
Precision Cutting Features
- Track-guided cutting system for straight, accurate rip cuts
- Head travels on 6 precision bearings for smooth operation
- Manual cutting depth adjustment via hand wheel
- Designed for on-site slab cutting with minimal setup

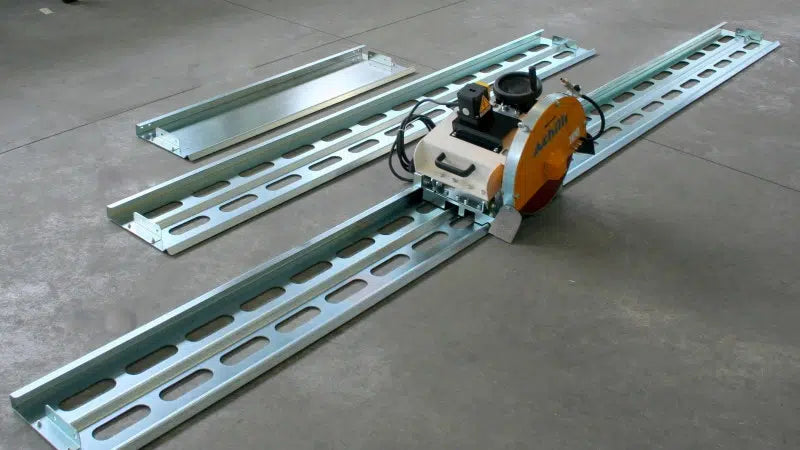

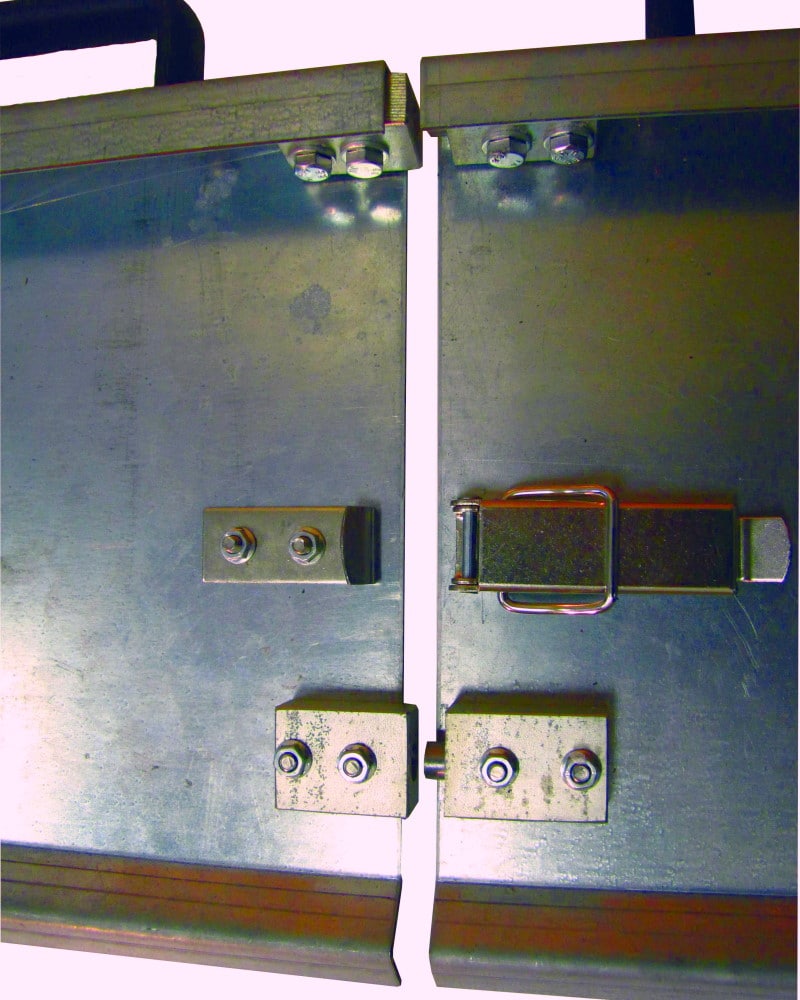

Rail System
Modular rail system allows flexible setup depending on job requirements. Rails are easy to transport, assemble, and align on-site.
- 3-piece rail system: 1250 mm each (total 3600 mm / 12’)
- Single rail option: 2500 mm (8’)
- Single rail option: 4000 mm (13’)
Structure & Durability
Steel frame construction, sandblasted and finished with epoxy powder coating for long-term durability. Galvanized finish available upon request.

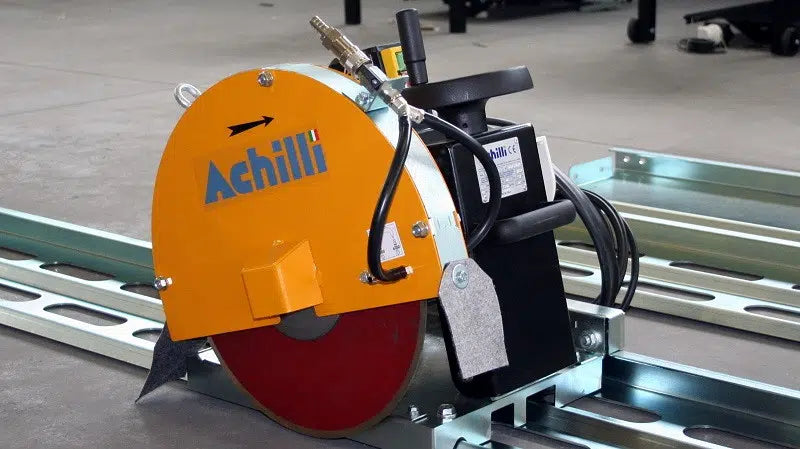

Water System
Equipped with an easy one-hand water connection for quick setup and efficient blade cooling during operation.
Portability
- Lightweight and compact design for easy transport
- Collapsible rail system for convenient handling
- Ideal for on-site fabrication and installation work
Optional Accessories
- Rail Sets: Available in multiple lengths (1250 mm sections, 2500 mm, or 4000 mm) to match cutting requirements
The Achilli TSA delivers precision, portability, and flexibility, making it an essential tool for professionals performing straight cuts on large stone slabs directly on-site.
