Achilli GOLD CNC Monoblock Bridge Saw

High-precision 4+1 axis CNC bridge saw with brushless motors for advanced stone processing.

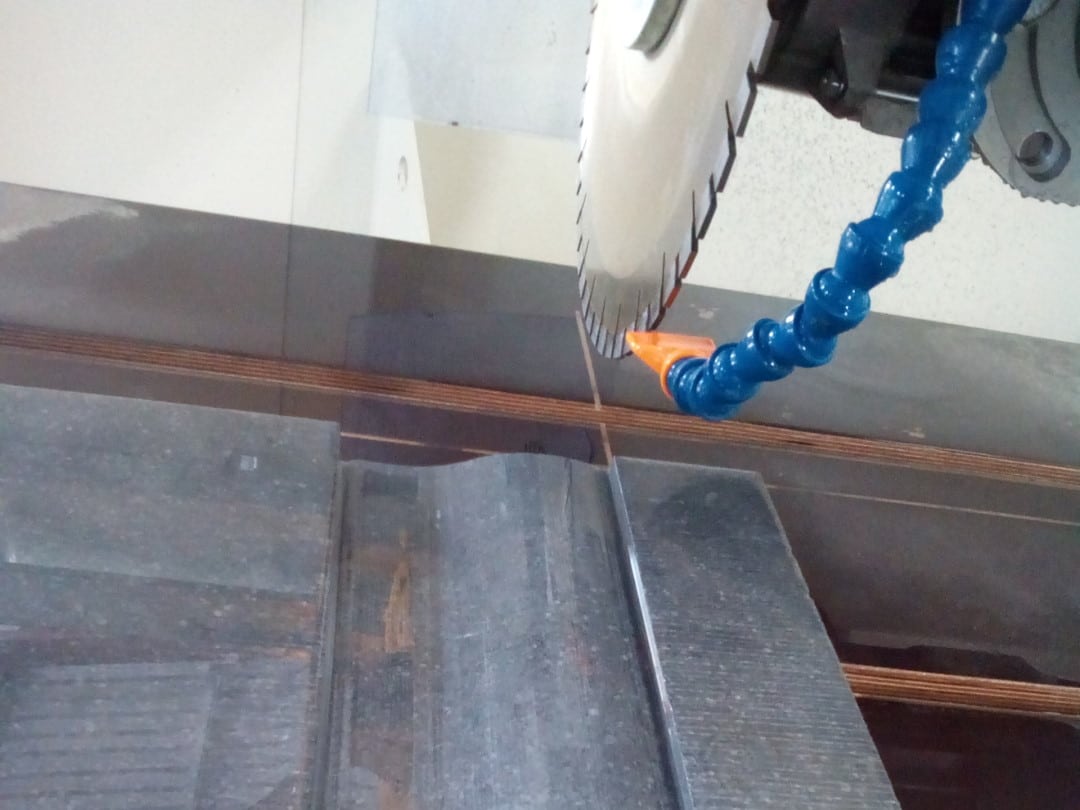

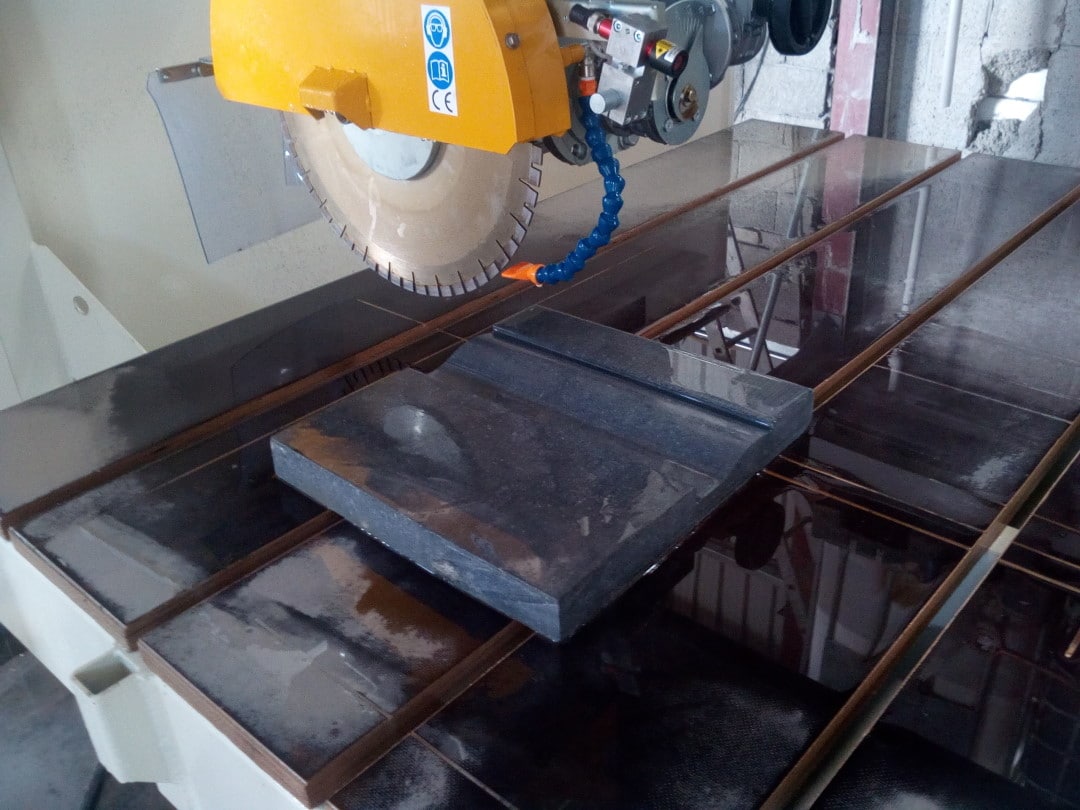

The Achilli GOLD is a next-generation CNC monoblock bridge saw designed for precision cutting, profiling, and drilling of stone slabs. Featuring automatic head rotation, CNC-controlled movements, and a robust monoblock structure, it delivers exceptional accuracy and efficiency for high-end fabrication shops.

Performance & Cutting Capacity

• X-axis travel: 3900 mm (12'8")
• Y-axis travel: 2380 mm (7'8")
• Z-axis travel: 320 mm (12")
• Worktable size: 4800 × 2200 mm (11'5" × 7'2")
• Blade diameter: 350–525 mm (14”–20”)
• Main motor power: 11 kW (15 HP)
• Variable speed: 800–3000 RPM

CNC Precision & Automation

• 4+1 axis CNC control for fully automated cutting operations

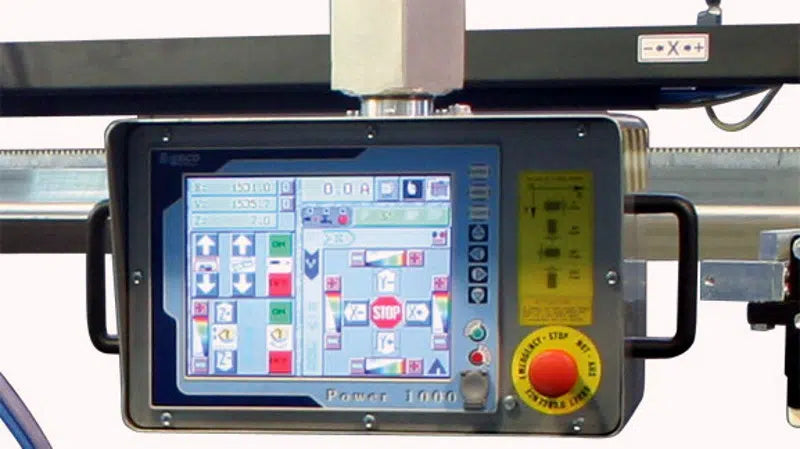

• 12” touchscreen interface for intuitive programming

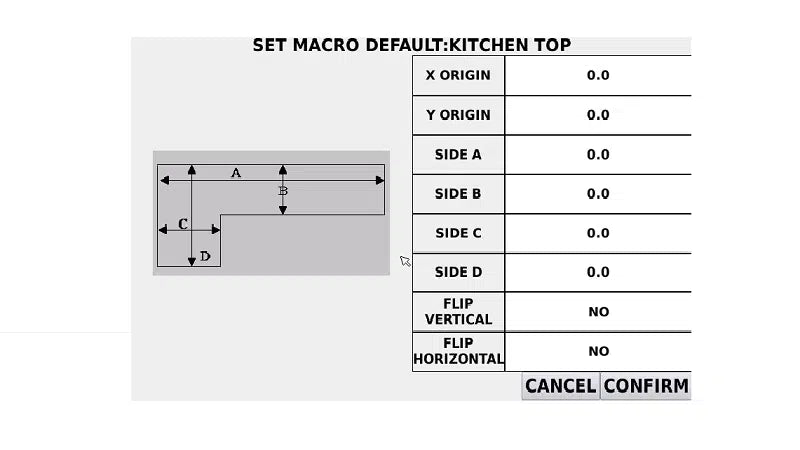

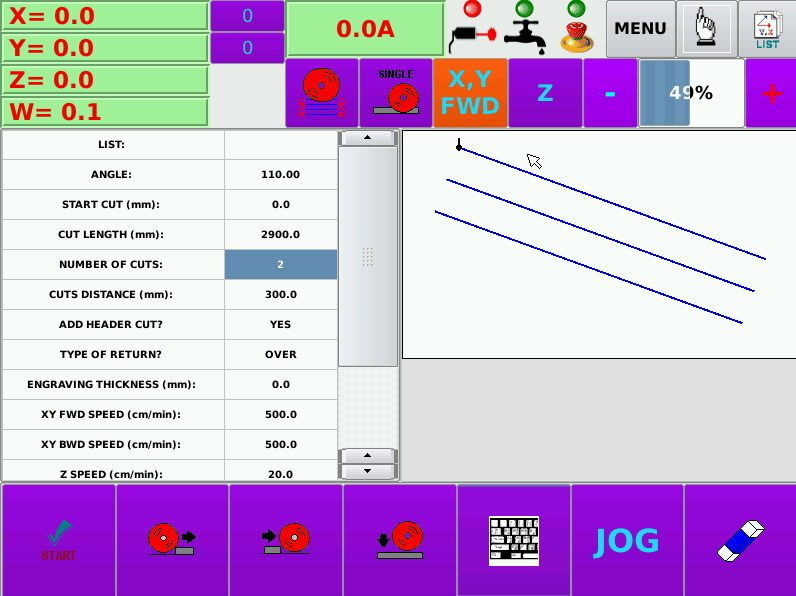

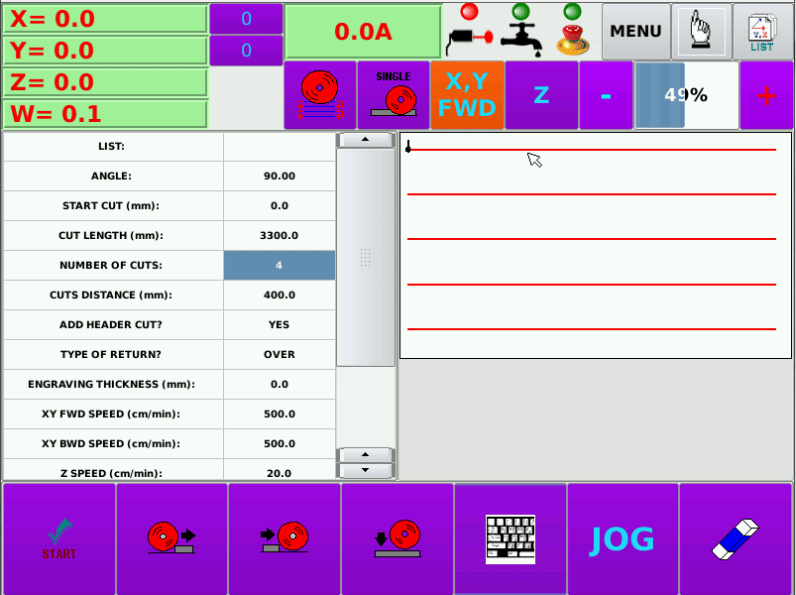

• Pre-loaded cutting programs (hexagon, octagon, kitchen tops, polygons, and more)
• Automatic execution of cutting cycles without manual intervention

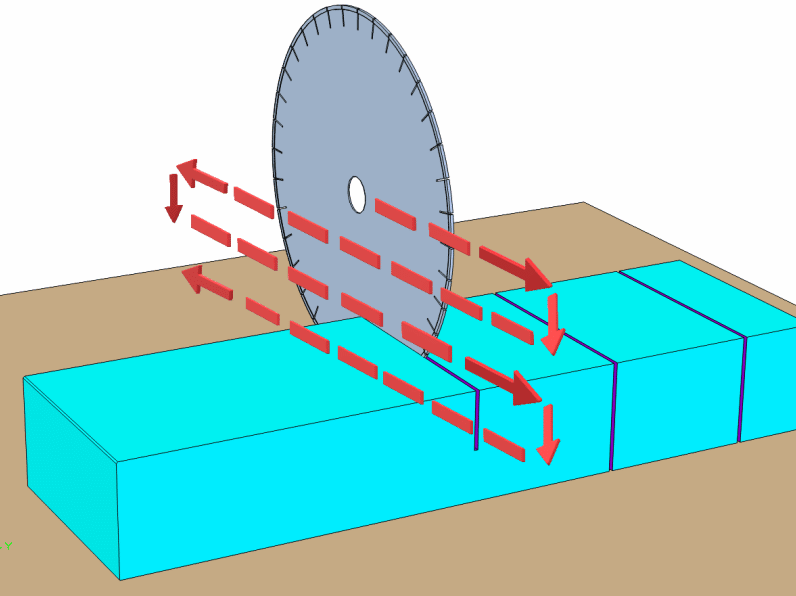

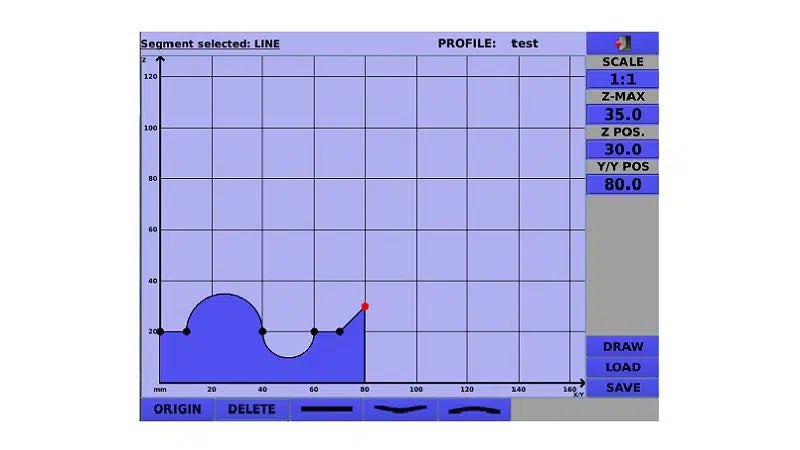

• Profiling software for decorative edges, frames, and custom shapes

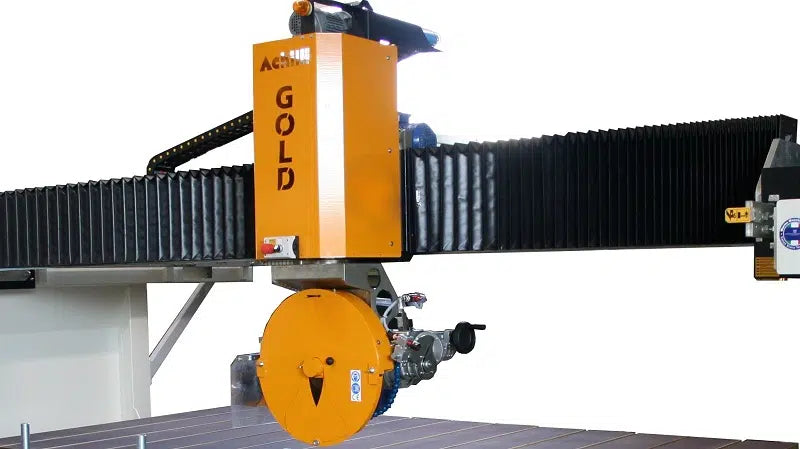

Head Motion & Cutting Flexibility

• Automatic head rotation from 0° to 360°

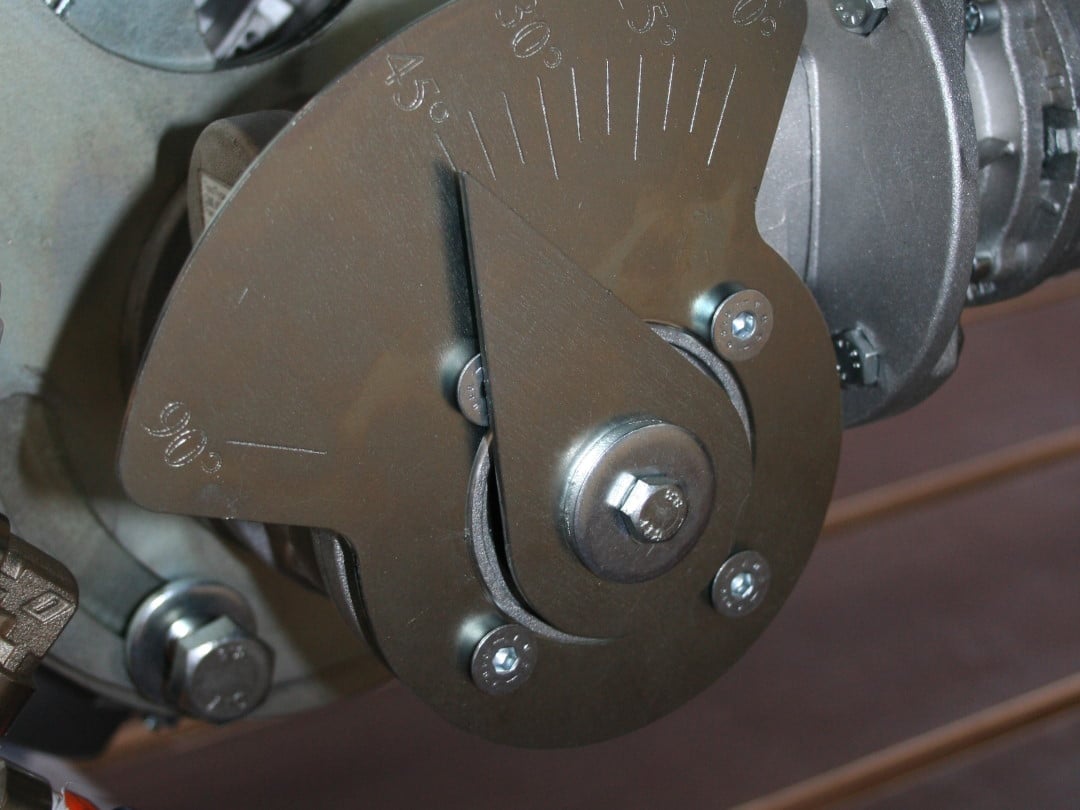

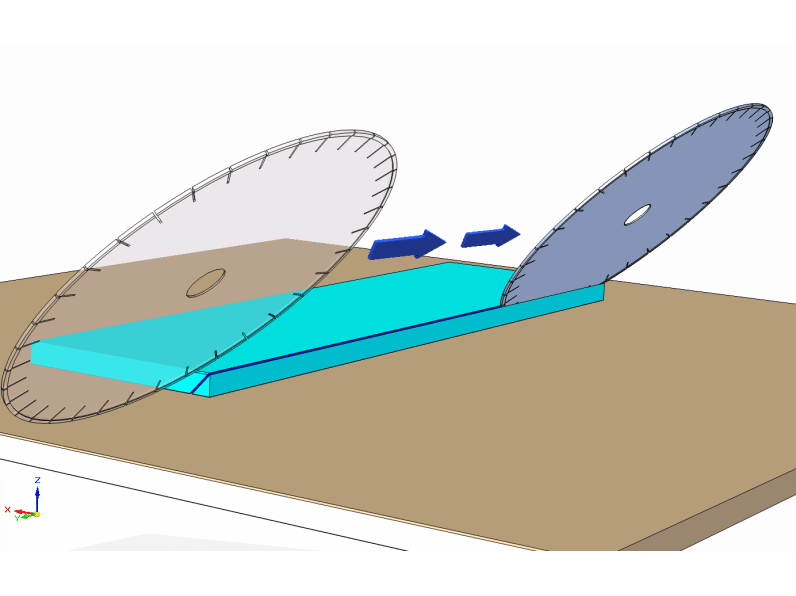

• CNC-controlled head tilt from 90° to 0° for angled and horizontal cuts
• Brushless motors ensure smooth, precise, and reliable movement
• Linear guides with recirculating ball slides for maximum accuracy

Structure & Durability

• Monoblock steel structure for easy installation (no foundation required)
• Hot-dip galvanized frame for long-term corrosion resistance
• Built for continuous industrial use with high stability and rigidity

Worktable & Material Handling

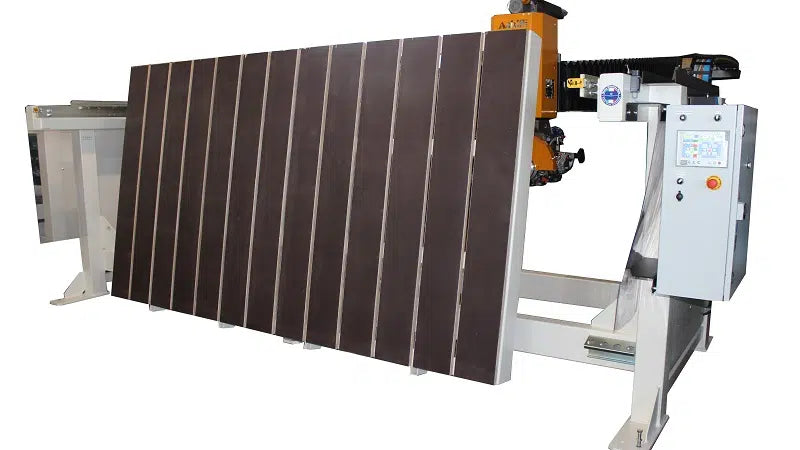

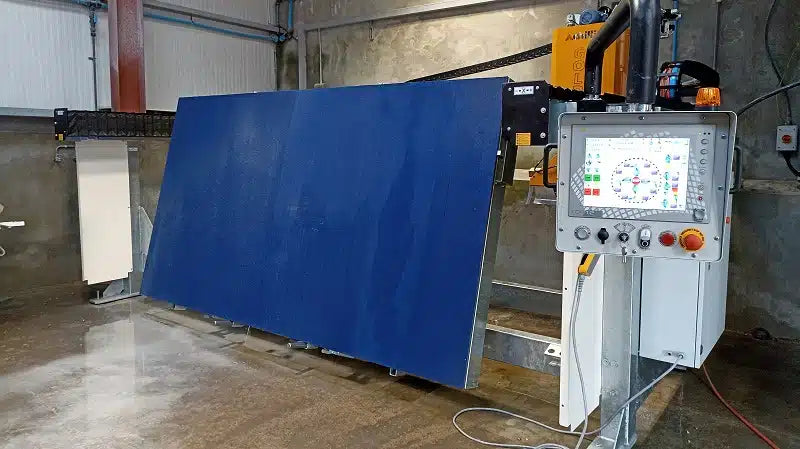

• Hydraulic tilting worktable for easy slab loading
• Work surface covered with WPC and rubber layer for protection
• Designed for safe handling of large and heavy stone slabs

Drilling & Advanced Processing

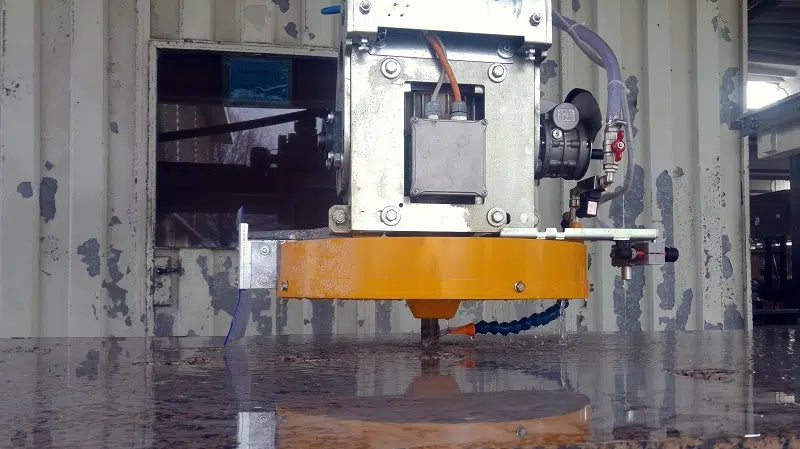

• Integrated 1/2” GAS connection for core drilling applications
• Automatic drilling cycle for corner cutting and stress relief on sintered materials
• Ideal for countertops, sink cut-outs, and precision fabrication

Optional Accessories

• Laser Guide: Projects blade cutting line for improved accuracy and alignment
• Tilting Work Table: CNC-controlled hydraulic tilting system for easier slab loading

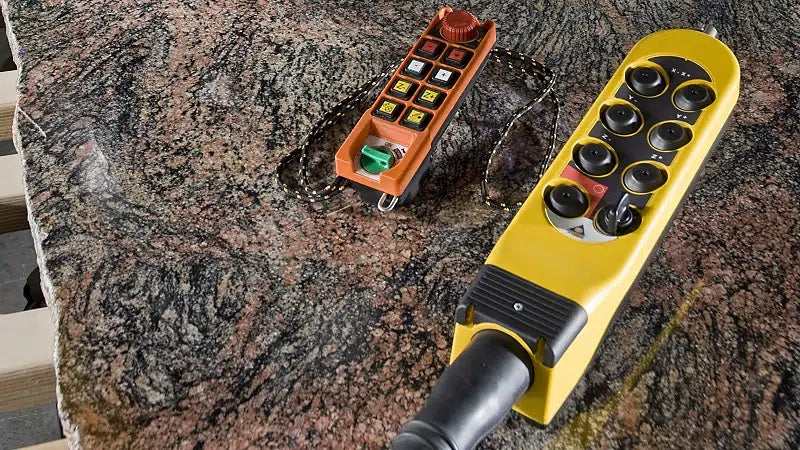

• Wireless Pendant Control: Allows remote operation and improved workflow flexibility
• Pneumatic Pop-Up Slab Stops: Facilitates handling of thin materials (0–80 mm)
• Pop-Up Rollers: Hydraulic system for easier slab positioning and movement
• Side Extension Tables with Rollers: Expands work surface and improves slab handling (59 × 34 in. / 1510 × 865 mm)

The Achilli GOLD combines advanced CNC automation, precision engineering, and robust construction, making it the ideal solution for fabricators seeking maximum productivity, flexibility, and cutting accuracy.
