Mobile Suction Arm Dry Dust Collector

The Filter Project Mobile Suction Arm Dry Dust Collector is a powerful, industrial-grade dust extraction system designed for granite, marble, quartz, quartzite, porcelain, ceramic, concrete, solid surface, cultured marble, and other airborne fabrication debris.

Powered by a 2 HP centrifugal fan motor (220V, 3 Phase), this portable in-shop dust collector generates 1,800 m³/h (63,566 cf/h) of suction power, capturing up to 99.9% of airborne dust at the source.

High-Efficiency Filtration System

The system features a specially designed cartridge filter measuring 18" in diameter and 39" in length. This oversized filtration unit maximizes dust capture efficiency while maintaining strong airflow.

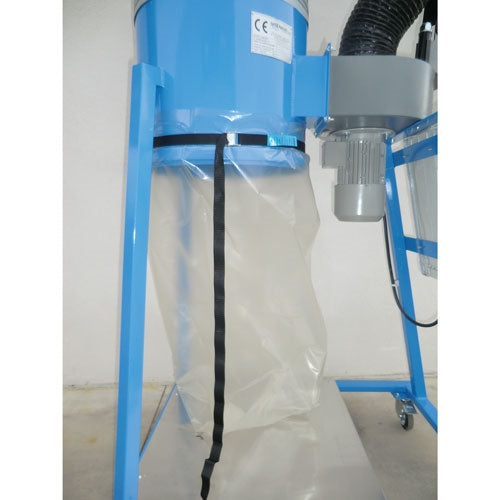

Once dust is collected, the self-cleaning system releases debris into a disposable bag compartment. Standard trash bags can be easily secured using the included strap system for simple disposal.

Flexible 6" Suction Arm

• 6" diameter heavy-duty suction arm
• Maximum reach: 102" (8'6")
• Perfect for work tables, polishing stations, and cutting areas
• Adjustable positioning for point-of-use dust capture

Mobility & Construction

• 4 swivel wheels (2 with locking brakes)
• Heavy-duty powder-coated steel frame
• Independent, fully mobile system
• Built for long-term industrial use

Specifications

• Motor: 2 HP centrifugal fan
• Power: 220V, 3 Phase, 20 Amp
• Suction Power: 1,800 m³/h (63,566 cf/h)
• Length: 28"
• Width: 40"
• Height: 88-1/2"
• Weight: 176 lbs
• Arm Reach: Up to 102"

Key Benefits

• Captures 99.9% of airborne fabrication dust
• Improves shop air quality and worker safety
• Portable and repositionable for flexible use
• Self-cleaning filtration system
• Industrial-grade performance and durability
