SPRUT Slab Transport System – Large Format Tile Lifting & Moving Tool with Vacuum Suction

Large Format Tile Slabs Carrying Tool

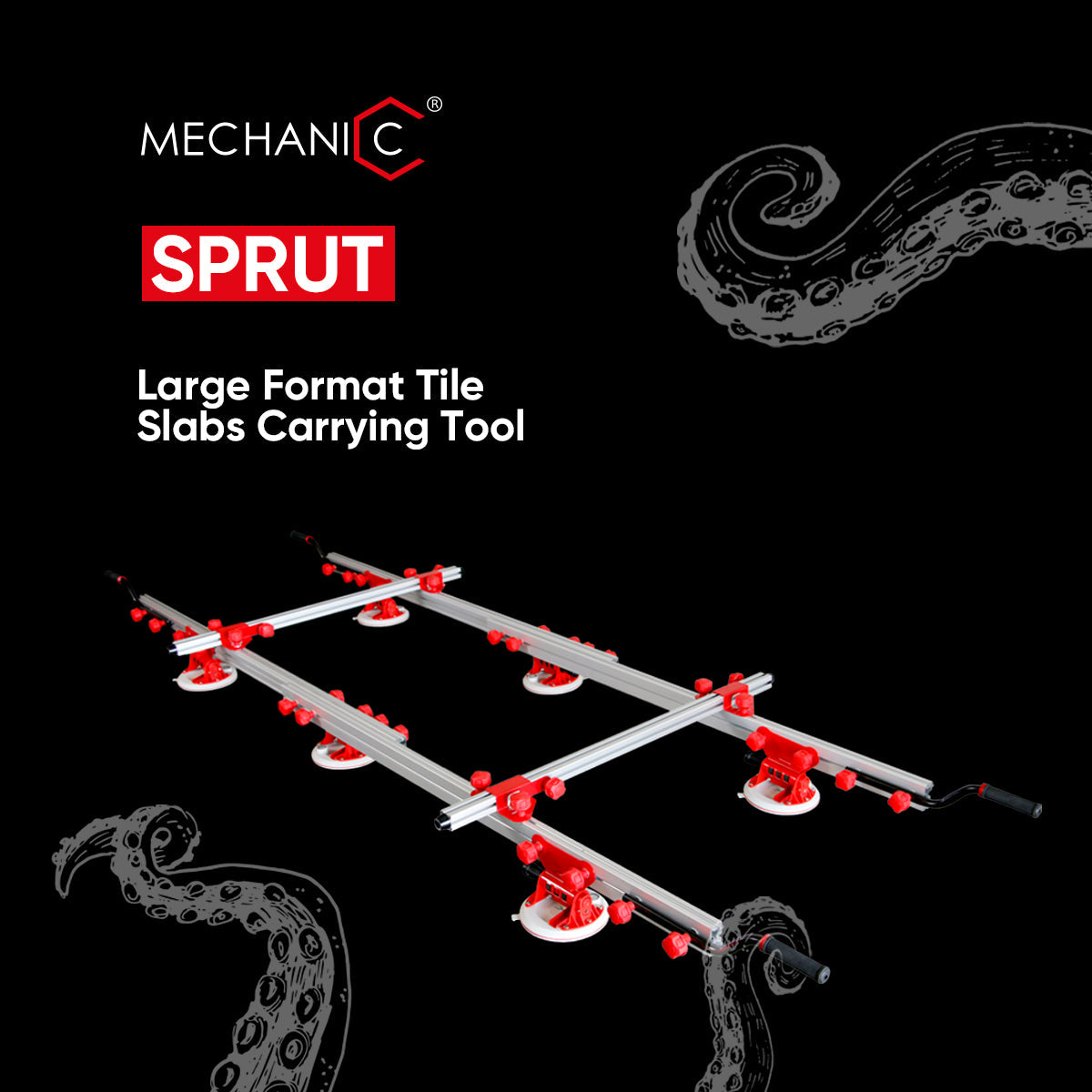

The Mechanic SPRUT Slab Transport System is the ultimate solution for lifting, moving, and installing large format porcelain and ceramic slabs with ease and safety. Engineered for professionals, this system is built to handle slabs up to 126" (320 cm) long, 63" (160 cm) wide, and 1100 lbs (500 kg).

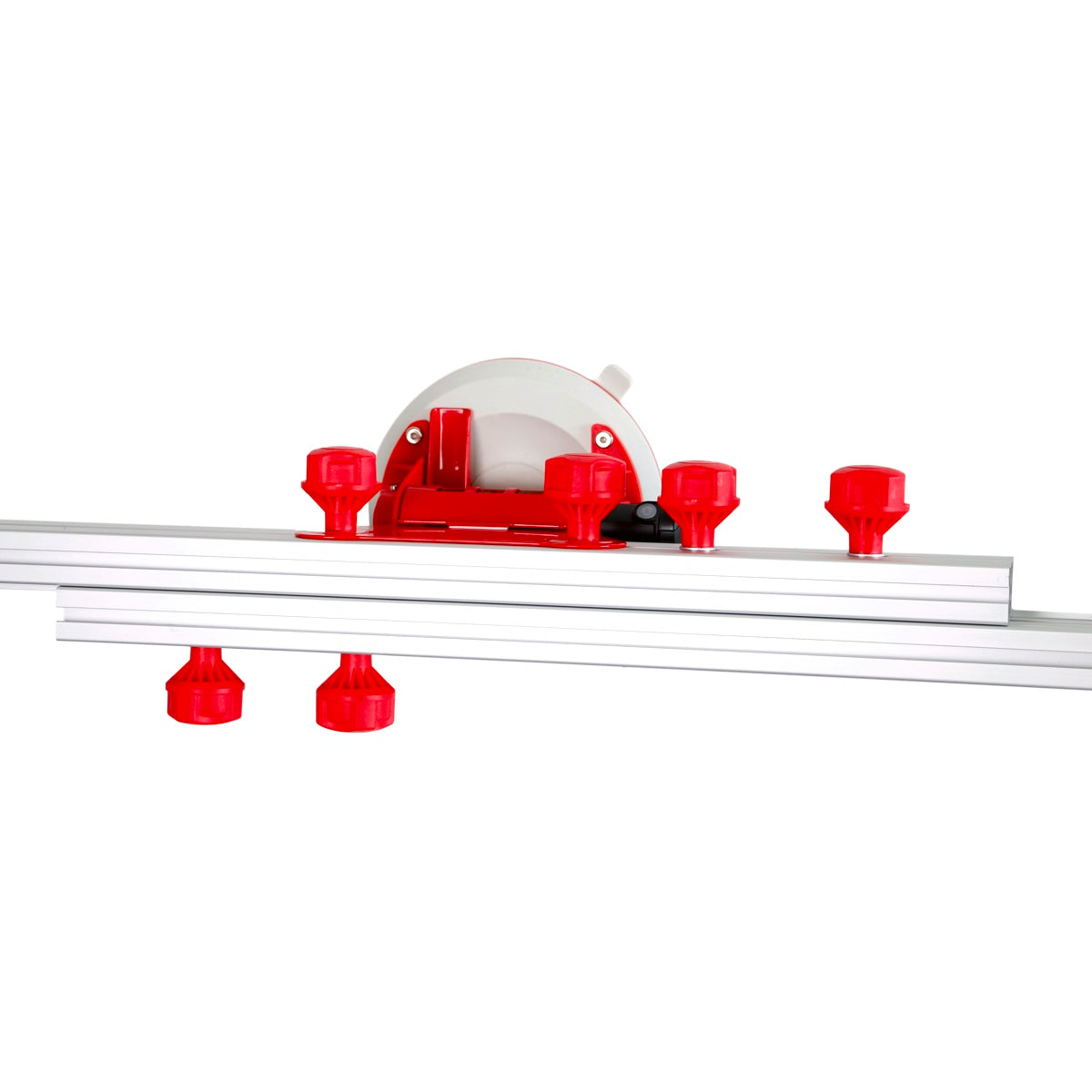

Equipped with six heavy-duty 8" (200 mm) vacuum suction cups powered by electric air pumps, the SPRUT provides reliable fixation on both smooth and textured tile surfaces. Each cup supports up to 330 lbs (150 kg), ensuring maximum safety during handling. White suction cups protect against surface staining, while built-in gauges allow precise pressure monitoring.

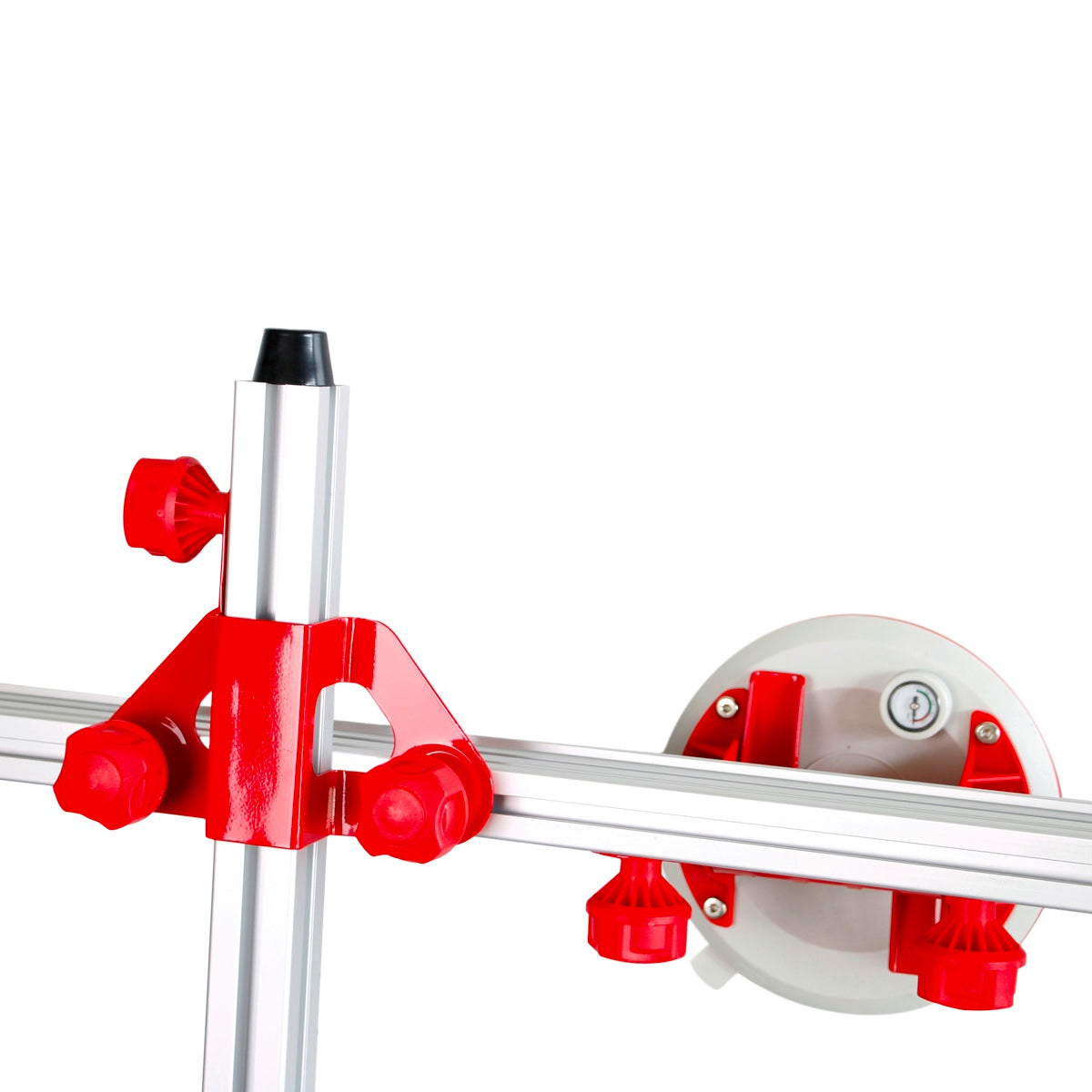

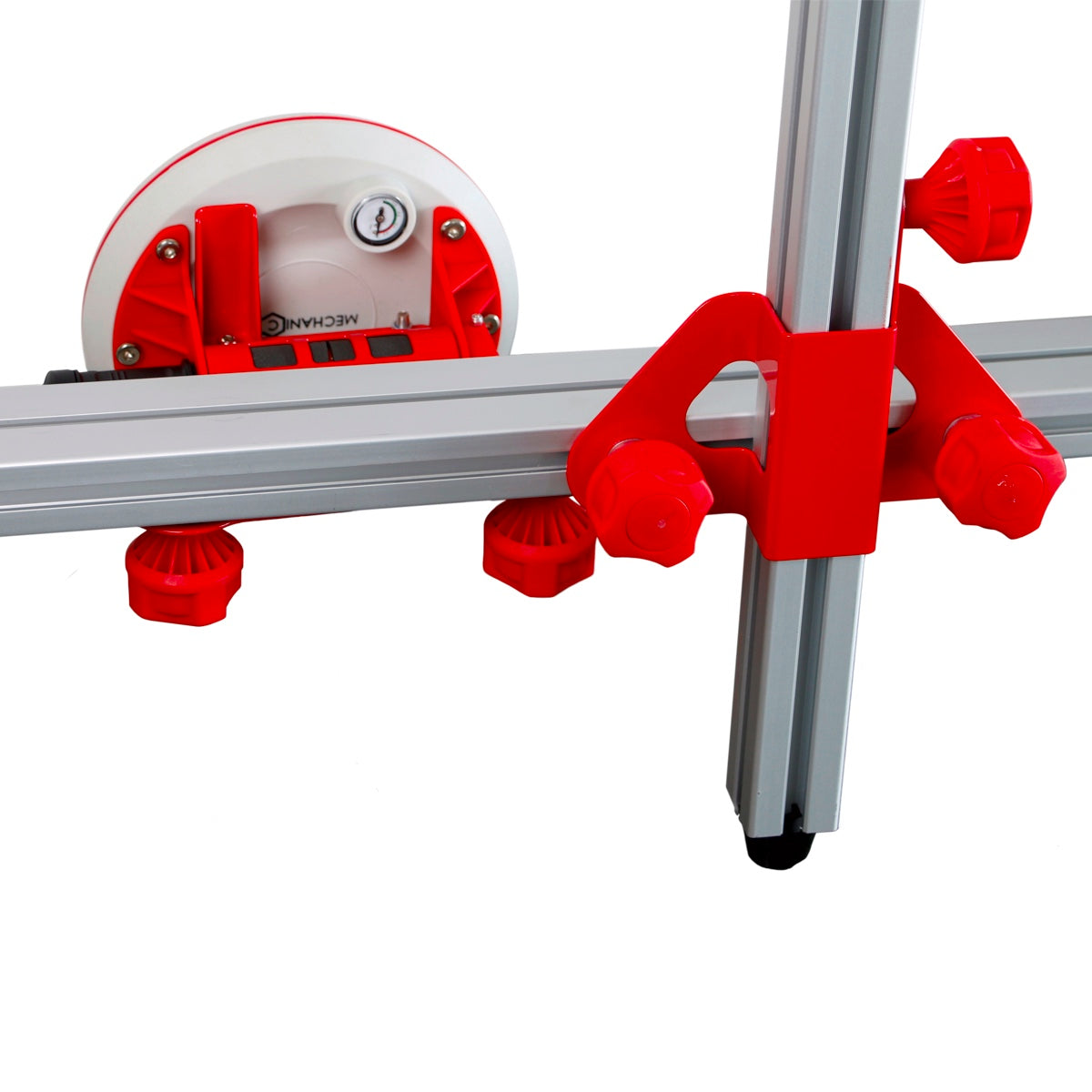

The transport system features lightweight telescopic aluminum profiles adjustable in length from 65" to 126" (165–320 cm) and width from 20" to 63" (0.5–1.6 m), reinforced with crossbars for added stability. The modular design allows for versatile configurations, including single-guide handling for narrow or medium slabs.

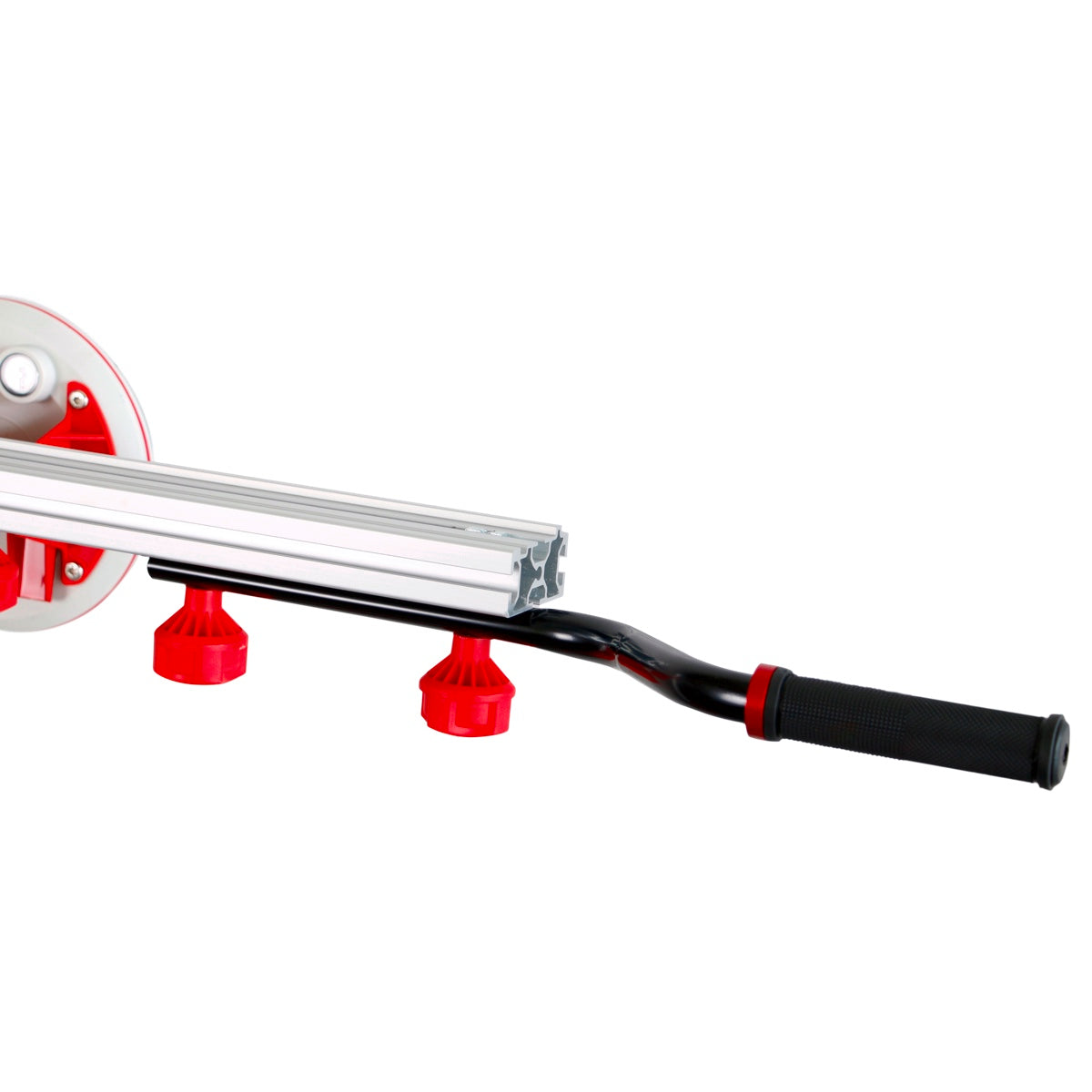

Despite its impressive capacity, the SPRUT weighs just 66 lbs (30 kg), making it portable and easy to maneuver. A rolling storage bag is included for convenient transportation and safe storage. With adjustable handles and removable suction pumps, the system adapts seamlessly to various tile sizes and jobsite conditions.

Specification	Detail
Max Tile Length	126 in. (320 cm)
Max Tile Width	63 in. (160 cm)
Max Load Capacity	1100 lbs (500 kg)
Suction Cups	6 pcs, 8 in. (200 mm) diameter
Cup Capacity	330 lbs (150 kg) each
Profiles	Telescopic aluminum, 65–126 in. (165–320 cm)
Width Adjustment	20–63 in. (0.5–1.6 m)
System Weight	66 lbs (30 kg)
Profile Weight w/ Cups	30 lbs (13.5 kg) each
Handles	4 adjustable ergonomic handles
Included	Storage bag, 2 crossbar sets, suction pumps
Brand	Mechanic



Customer Testimonial

⭐⭐⭐⭐⭐
“The SPRUT system has completely changed the way we move large porcelain slabs. Strong suction, easy to adjust, and lightweight. Worth every penny!” – Daniel M.

---

Usage Tips

• Always check suction cup gauges before lifting slabs
• Use both longitudinal guides for slabs over 1 m wide
• Remove suction pumps for manual positioning when needed
• White suction cups prevent stains on polished tiles
• Keep suction cups clean for maximum holding power
• Store in the provided rolling bag for safe transport

---

FAQ

Q: What is the maximum tile size the SPRUT system can handle?

A: Up to 126" x 63" (320 x 160 cm) and 1100 lbs (500 kg).

Q: Can it be used on textured slabs?

A: Yes, but holding capacity may be slightly reduced depending on the surface relief.

Q: Does it come with a storage case?

A: Yes, a rolling bag is included for easy transport and storage.

Q: How many suction cups are included?

A: The system has six 8" (200 mm) vacuum suction cups with electric pumps.

Q: Can one person use it alone?

A: While lightweight, safe operation for large slabs typically requires at least two people.
