Filter Project Water Wall Wet Dust Collection Booth System
Filter Project Water Suction Wall Wet Dust Collection Booth
The Filter Project Water Suction Wall Wet Dust Collection Booth is a heavy-duty wet dust collection system designed to capture up to 90% of airborne dust generated when working with granite, marble, engineered stone, quartz, quartzite, porcelain, and other fabrication materials. Constructed entirely from stainless steel, this durable system helps improve air quality and create a safer working environment for stone fabrication shops.
With OSHA regulations targeting silica exposure in stone fabrication, the Filter Project Water Suction Wall provides an effective solution for reducing airborne silica dust during grinding, cutting, polishing, and shaping operations.
How the Water Wall System Works
The system operates using a circulating waterfall filtration system combined with powerful suction motors. Water is continuously pumped from the lower reservoir to the top of the booth, creating a flowing wall of water that cascades back into the collection tray.
When the system is operating, strong horizontal airflow pulls airborne dust particles away from the work area and directly into the water wall. The flowing water captures the dust and carries it into the catch basin below, where it settles as sludge for easy removal.
This process helps significantly reduce airborne dust while improving visibility and workplace safety.
Simple Operation

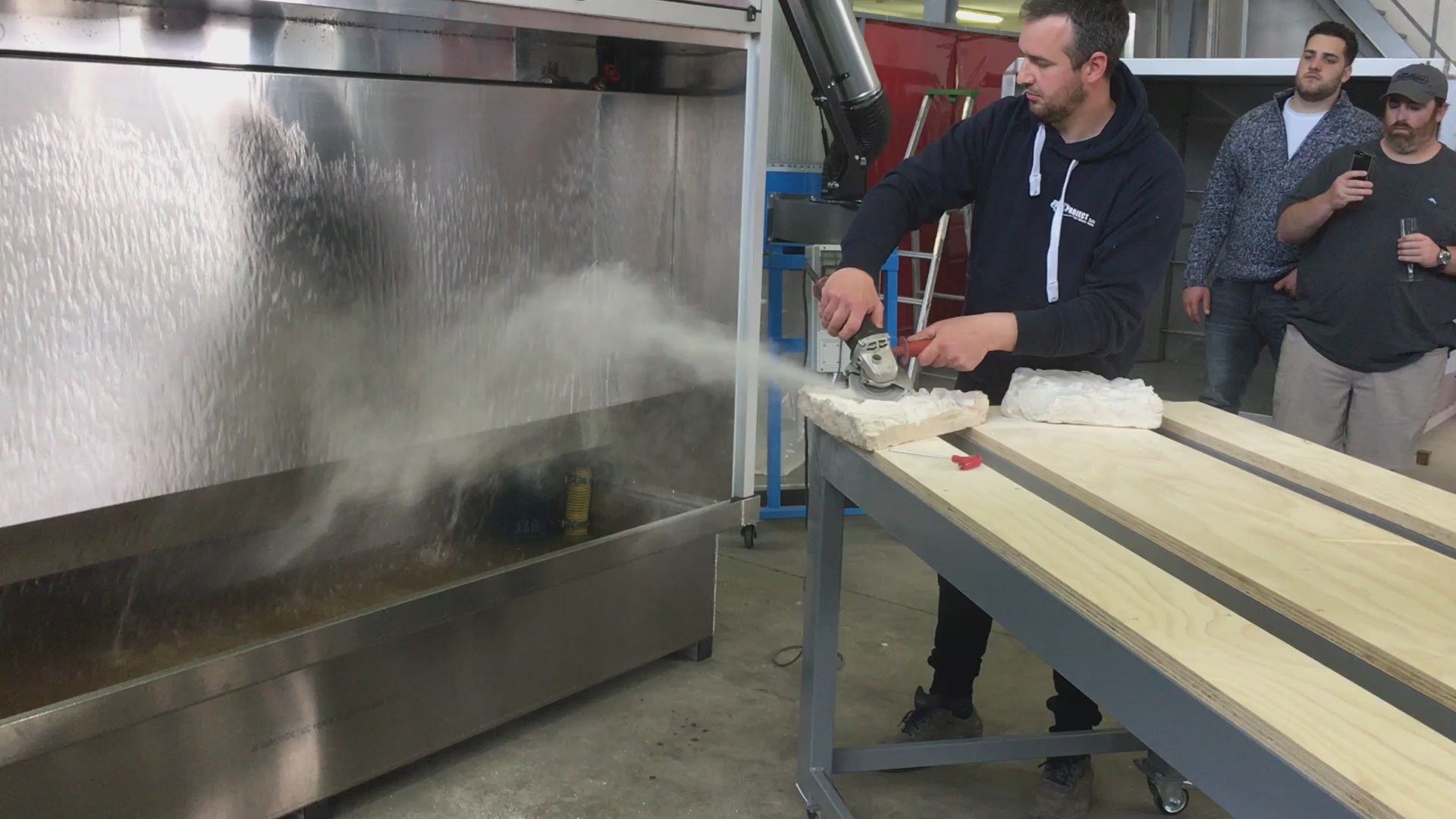

Operating the Water Suction Wall is simple. Turn the system on and work directly in front of the booth while grinding, shaping, polishing, or finishing stone. The horizontal airflow continuously pulls dust away from the operator and into the water wall, helping reduce inhalation of harmful airborne particles.
Available Sizes
The Filter Project Water Suction Wall is available in multiple sizes to accommodate different shop layouts and production requirements.
| Size | Suction Length | Total Length | Width | Height | Weight | Power (220V 3 Phase) | Aspiration | Dust Efficiency | Noise Level |
|---|---|---|---|---|---|---|---|---|---|
| 6 1/2 Ft (2 Meter) | 76" (1930 mm) | 89" (2250 mm) | 38" (950 mm) | 94" (2380 mm) | 506 lbs (230 kg) | 4.5 hp (3.3 kW) | 12,000 m³/h | 90% | 74 dB |
| 10 Ft (3 Meter) | 115" (2930 mm) | 128" (3250 mm) | 38" (950 mm) | 94" (2380 mm) | 704 lbs (320 kg) | 7 hp (5.5 kW) | 15,000 m³/h | 90% | 74 dB |
| 13 Ft (4 Meter) | 155" (3930 mm) | 179" (4550 mm) | 38" (950 mm) | 94" (2380 mm) | 913 lbs (415 kg) | 8 hp (6 kW) | 25,000 m³/h | 90% | 74 dB |
Extension Enclosures
The Filter Project Water Dust Collection Booth includes a 3 ft (1 meter) extension enclosure that helps improve dust containment and increase vacuum efficiency. Optional 6 ft (2 meter) extension enclosures are available to expand the working area and provide additional dust control coverage.
Key Benefits
- Captures up to 90% of airborne dust particles
- Helps reduce silica exposure in fabrication environments
- Heavy-duty stainless steel construction
- Water wall system traps dust before it enters the air
- Powerful suction pulls dust directly from the work area
- Simple operation with push-button startup

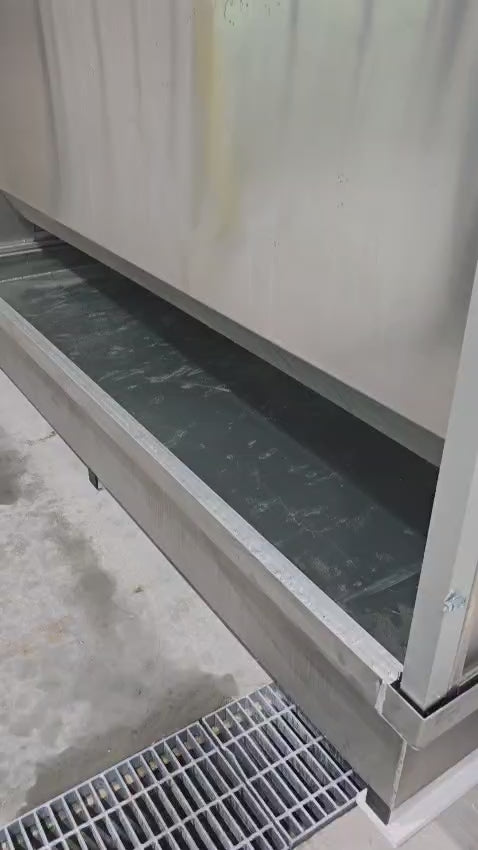

- Easy maintenance with removable sludge catch basin
- Available in multiple sizes for different production requirements
- Optional extension enclosures for increased coverage
- Improves workplace cleanliness and air quality
