Weha Double Telescopic Forklift Boom – 5 Ton Capacity

The Weha Double Telescopic Forklift Boom is engineered for safely unloading full stone slab bundles — including bundle crates — directly from shipping containers. Designed for heavy-duty industrial use, this 5-ton (11,023 lb) rated attachment provides a stable, balanced lifting solution for granite, marble, quartz, porcelain, sintered stone, ceramic, and other slab materials.

The dual-boom design allows full-length insertion into containers without obstruction, enabling operators to pull loads safely back to the forklift mast. Built for 5-ton and larger forklifts, this boom offers superior strength, visibility, and load control during container unloading operations.

Key Features

• 5 Ton Capacity: Rated for up to 11,023 lbs (5,000 kg)
• Dual Telescopic Boom Design: Safely lifts full slab bundles and crates
• Adjustable Connection Bar: Expands from 12.6" to 50" to accommodate various bundle widths
• Open-Center Design: No obstruction between booms for full container access
• Includes 2 Sets of Lifting Straps: Designed to wrap securely beneath slab bundles
• Heavy-Duty Construction: High-grade rectangular tube steel with durable powder-coated finish
• Integrated Hook System: Easy attachment to flat web sling eyes
• Storage Dolly Included: Allows easy transport and storage when not in use

Applications

• Unloading slab bundles from containers
• Granite and marble bundles
• Quartz and engineered stone slabs
• Sintered stone, porcelain, and ceramic materials

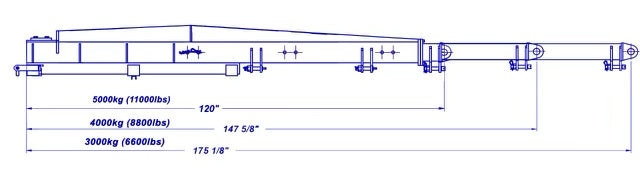

Specifications

• Capacity: 11,023 lbs (5,000 kg)
• Connection Bar Adjustment: 12.6" – 50"
• Construction: Rectangular tube steel
• Finish: Powder-coated
• Forklift Requirement: Designed for 5-ton and larger forklift trucks
• Includes: Double boom assembly, lifting straps, storage dolly

Important: Always refer to the workload limit plate on the boom and ensure proper forklift capacity before operation.

Key Benefits

• Safely unload full slab bundles and crates from containers
• Adjustable design fits multiple bundle sizes
• Improved operator visibility and control
• Heavy-duty construction for long-term durability
• Includes storage dolly for easy handling when not in use
