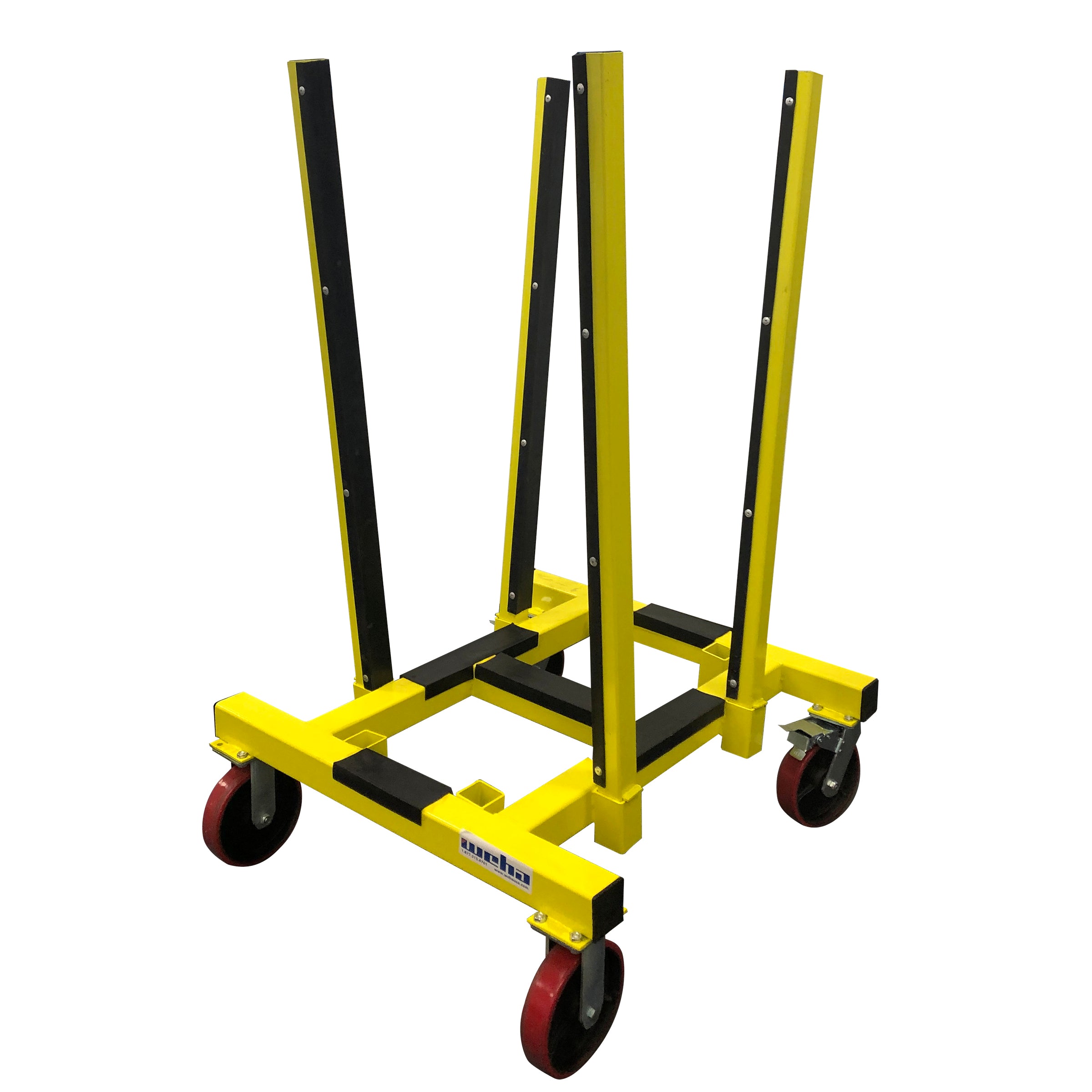

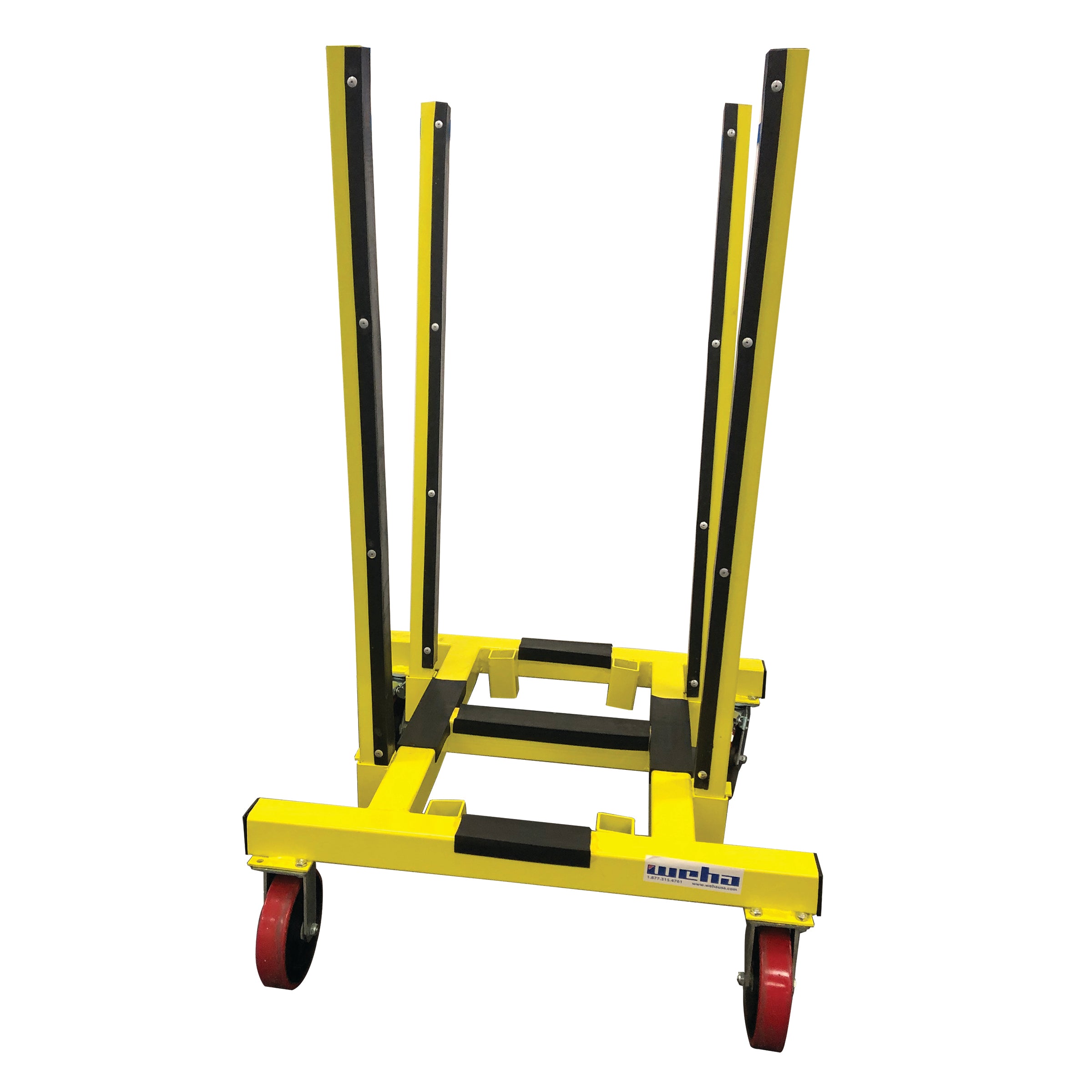

Weha V Cart Flip Cart – 2200 lb Capacity
The Weha V Cart Flip Cart is engineered for safely transporting and flipping heavy stone slabs in fabrication shops. Designed to handle granite, marble, quartz, engineered stone, quartzite, and other sheet materials, this heavy-duty cart allows fabricators to efficiently move pieces between bridge saws, CNC machines, and workstations while minimizing manual handling.
With a 2,200 lb load capacity and a stable 38" x 36" base platform, the V Cart provides exceptional balance and security during transport. All contact points are rubber-lined to protect finished surfaces from scratches and damage.
Flip Functionality
The V Cart is specifically designed to flip slabs from polished side up to polished side down (and vice versa) with minimal movement:
- Load slab polished side up from the bridge saw.
- Remove two posts and rest the slab against the remaining posts.
- Insert the removed posts on the opposite side.
- Lean the slab against the newly inserted posts.
- Remove the original posts to access the opposite side of the slab.
- Load onto CNC polished side down.
This controlled flipping process reduces handling, increases efficiency, and improves shop safety.
Key Features
- 2,200 lb weight capacity

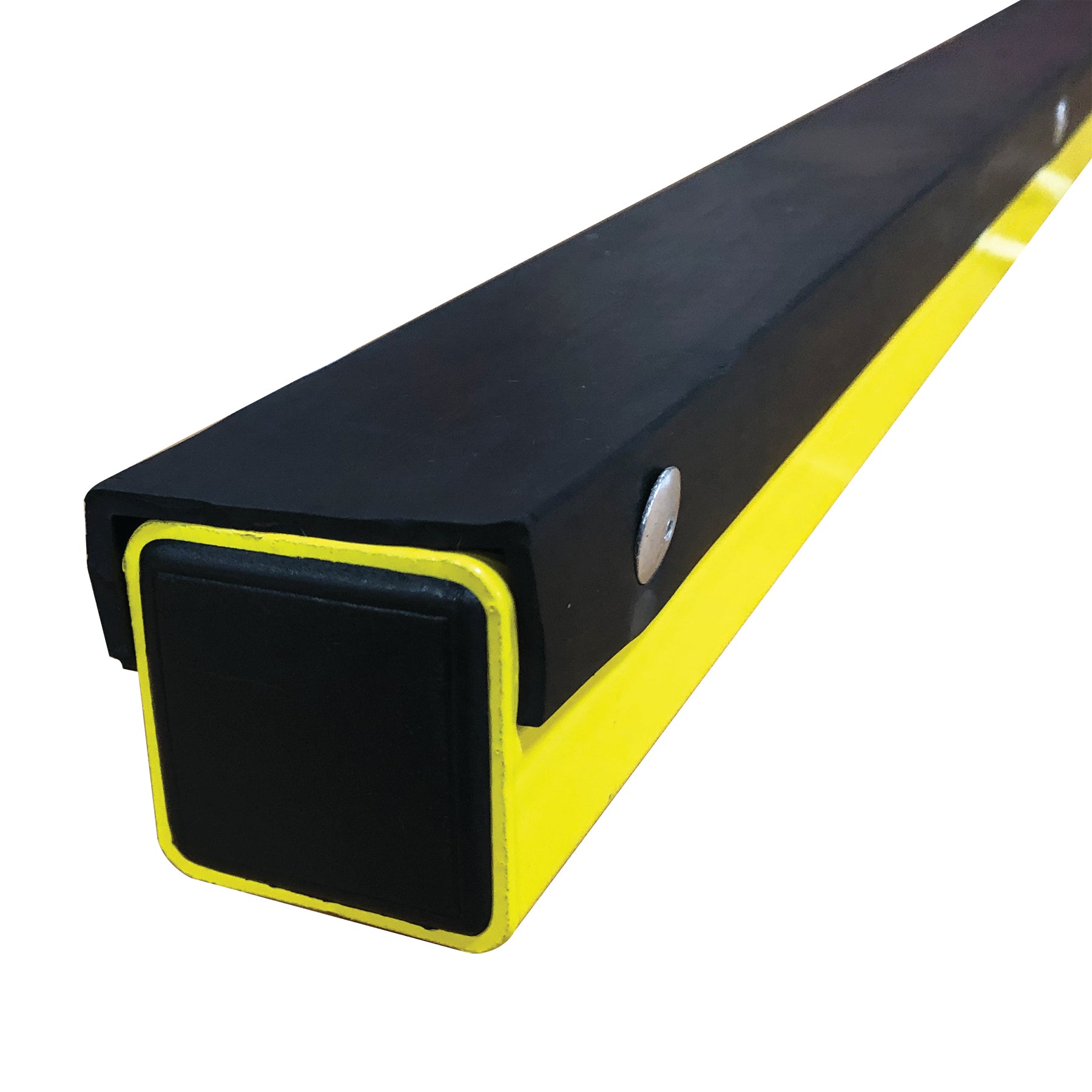

- Four removable 2" x 2" rubber-lined square tube posts
- Eight receiver positions for adjustable post placement
- 9 1/2" bottom spread between posts for slab positioning

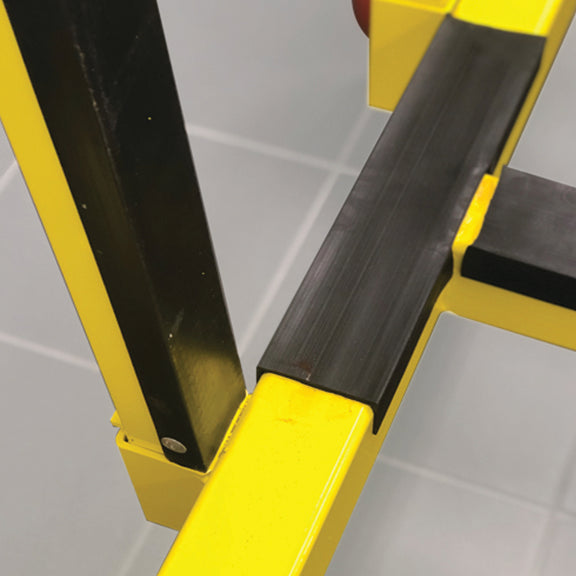

- Rubber-lined contact areas for surface protection

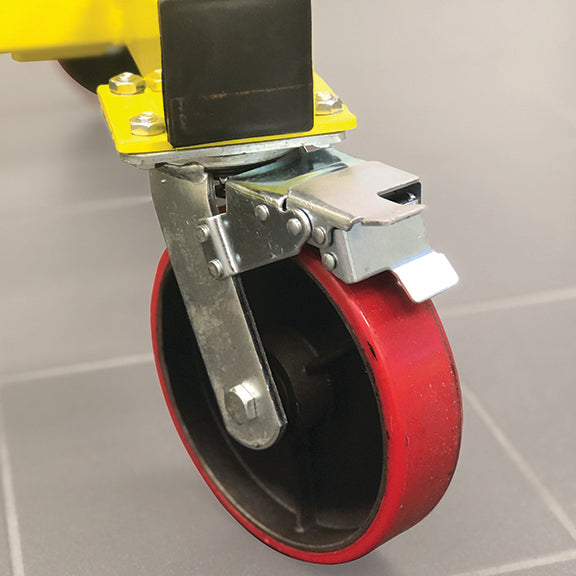

- Heavy-duty 8" wheels (2 fixed, 2 swivel locking)
- Solid steel construction for long-term durability
Specifications
- Base Dimensions: 38" x 36"
- Overall Height: 59 1/2"
- Post Size: 2" x 2" x 47 1/2"
- Wheel Diameter: 8"
- Weight Capacity: 2,200 lbs
Shipping Information
This item ships via LTL freight. Shipping charges are not automatically calculated at checkout to ensure the most accurate rate.
- Submit a Freight Quote request through the Freight Quote page.
- We will provide an exact shipping cost to your location.
- Enter the provided freight quote during checkout to complete your order.
Ships from Charlotte, NC. Contact us to connect with a distributor near you.
Key Benefits
- Safely flips slabs with minimal handling
- High 2,200 lb load capacity
- Protective rubber-lined contact points
- Stable base platform prevents tipping
- Improves workflow between bridge saw and CNC
- Professional-grade construction for shop use
