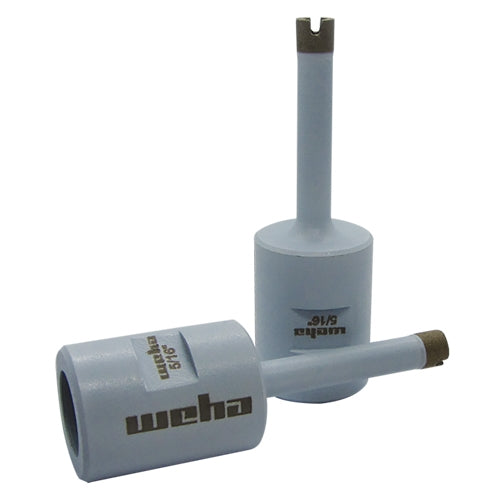

Weha Weramic Porcelain & Ceramic Non-Core Bit – 5/8-11 Thread
Weha Weramic Porcelain & Ceramic Non-Core Bits are specifically engineered for drilling ultra-compact sintered stone and large-format porcelain panels. Available in multiple diameters, these premium core bits are designed to produce smooth, chip-free holes in Dekton, Lapitec, Neolith, Laminam, and other sintered materials.
The Weramic series also performs exceptionally well on traditional ceramic materials, including floor tile and wall tile, delivering clean, precise results across a wide range of thicknesses.
Designed for Ultra-Compact Materials
Dekton, Lapitec, Neolith, Laminam, Large Format Porcelain Panels, Ceramic Floor & Wall Tile.
Weramic core bits are built with an ultra-thin 2mm rim thickness. This thin-wall design allows for faster drilling speeds while minimizing chipping on brittle porcelain and ceramic surfaces.
Clean, Chip-Free Performance
Engineered for precision, these non-core bits drill smooth, clean holes in materials ranging from 6mm up to 30mm thick when proper drilling techniques are followed.
- Wet or dry use on materials up to 6mm thick
- Wet use recommended for materials thicker than 6mm
- Designed for fast, controlled drilling
Specifications
- Available in Multiple Diameters
- Thread: 5/8-11
- Total Length: Approximately 3-1/8"
- Maximum Drilling Depth: Approximately 1-7/8"
- Thin Wall Rim Thickness: 2mm
- Recommended RPM: 1600–2800 RPM (adjust based on size and material)
Applications
Faucet & Plumbing Holes, Anchor & Hardware Installations, Jobsite Modifications, Shop Fabrication Drilling.
For CNC applications on Dekton, Lapitec, Neolith, and other sintered materials, Weramic CNC Core Bits are also available.
Key Benefits
- Ultra-thin rim for faster drilling
- Clean, chip-free holes in brittle materials
- Designed specifically for sintered stone
- Professional-grade durability
- Compatible with standard 5/8-11 grinders and drills
